Business Policies

Definition

A Business Policy allows to configure how to trigger actions on Object Types through a Feature with an optional configured Workflow.

Each time a Business Policy is created, an associated Job is created (according to the id of the Business Policy) in the "Business Service" tab. This job should be executed immediately or launched in scheduled mode to activate the Business Policy.

A Business Policy is triggered when:

the configured activation event is reached:
- A scheduled activation time has been reached, either unique or recurring (e.g: every Sunday at 5pm or next Monday at 9am)
- A fixed execution time has been reached (trigger execution fixed for a certain task/object)
a domain event has been received (e.g: an identity has been created)

However, a Business Policy might not be triggered if no execution targets could be resolved (the object may have been deleted...).

Usage

When the end of validity date of a user expires, we want to launch a Workflow to his/her manager.
In this case, the manager can validate or modify the end of validity date.

	Steps
1	Configure an update Feature on Identity type with: "endofvaliditydate" attribute in READ_WRITE mode an operation which triggers a Workflow
2	Configure the Workflow which will be launched when this Attribute is modified.
3	Configure the Business Policy with an action using a Groovy script.
4	Access the update Feature of an Identity and add an end of validity date.

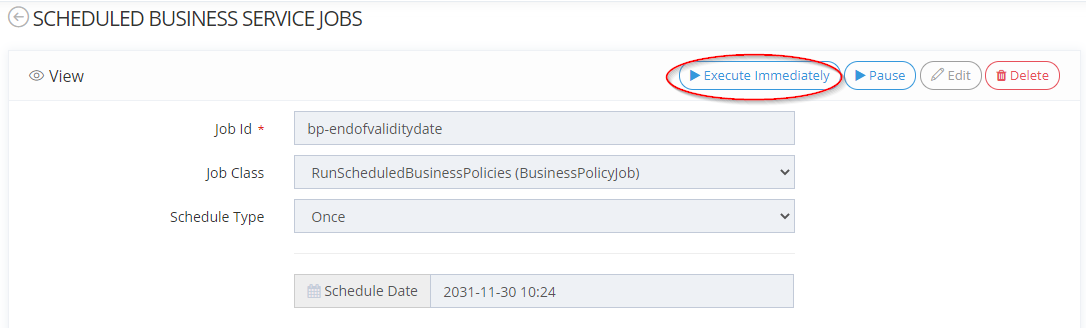

5	Access the admin portal. Click on "System" then on "Jobs" to execute immediately the Business Policy (on the Business Service tab). The Business Policy has been executed. The Workflow has been generated for each identity concerned by the Business Policy.

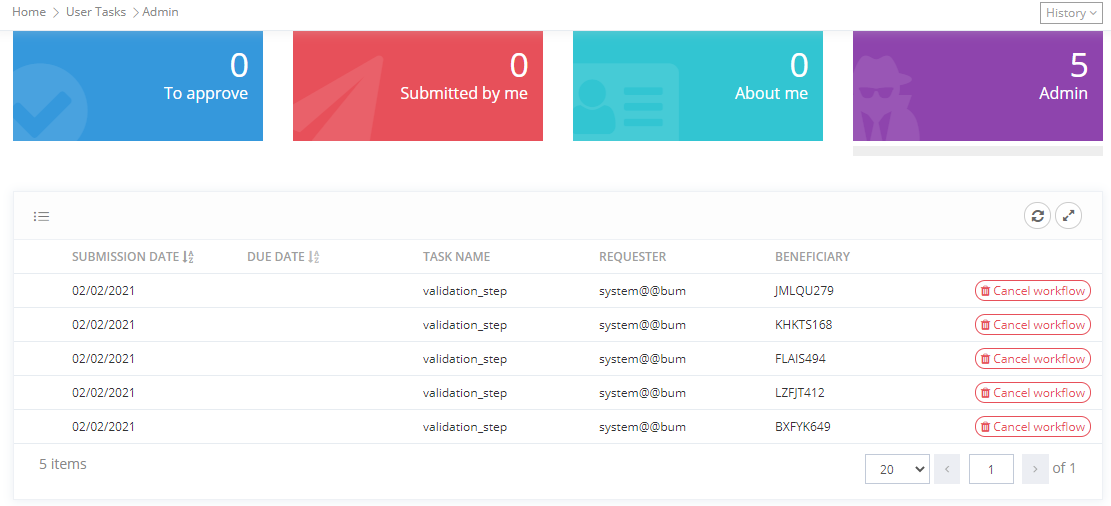

6	Access the Workflow dashboard on the User Portal to see all identities concerned by the user task.

Configuration

You can access the Business Policy configuration :

by clicking on "Portal" → “Business Policies”
by clicking on "System" → "Configurations" → "Business Model" and perform an import/export.

Properties

Property name	Type	Mandatory	Description	Values (default value in bold)
id	`String`	YES	The identifier is the unique identifier of each Business Policy. It is case sensitive and no special characters (except - or _) are allowed.	-
name	`String`	YES	The Business Policy name. The name may be different from the identifier.Specifying the name first allows to define automatically the identifier. Must be at least 4 characters long.	-
active	`Boolean`	NO	Allows to define if the Business Policy is activated or not.	ON, OFF
description	`String`	NO	Allows to describe the purpose of the Business Policy.	-
objectKind	`Enum`	YES	Allows to link the Business Policy to an Object kind. The Policy will apply to this Object kind.	Identity, Organization, Resource, Role, Role Publication
scope	`Scope`	YES	Allows to configure on which Objects the Business Policy will be applied. It is possible to define several Object Types.	-
activation	`Enum`	YES	Allows to choose how the Business Policy will be triggered either: according to an event on an Object according to a schedule	Object Event, Scheduled
handleEvent	`RuleDefinition`	NO	A test Rule to decide whether to handle the current event (can only be used in EVENT mode)	-
pageSize (only if activation is set to "Scheduled")	`Integer`	NO	Used to indicate how many objects can be processed in a batch by actions.	10 to 100
executionPlan (only if activation is set to "Scheduled")	`Enum`	NO	Used to configure the trigger frequency of the Business Policy: Once: choose a scheduled date Cron: choose how long the Business Policy is triggered (on the first day of the 10 months at 10 a.m., every monday...) Interval: choose a frequency (every minute, every hour...)	Once, Cron, Interval
actions	`Script, Notifications`	NO	Used to configure: a Groovy script to configure on which Feature the Business Policy is triggered. a Notification to send when the event occurs. It is possible to configure several actions.	-

Example

Business Policy Example

XML

<?xml version="1.0" encoding="UTF-8"?>
<kit:DataSet xmlns:atlastcf="http://www.memority.com/atlas/tcf/1_0" xmlns:ctd="http://www.memority.com/citadel/1_0" xmlns:ctdbpmn="http://www.memority.com/citadel/bpmn/1_0" xmlns:ctdbum="http://www.memority.com/citadel/bum/1_0" xmlns:ctdcore="http://www.memority.com/citadel/core/1_0" xmlns:ctdidm="http://www.memority.com/citadel/idm/1_0" xmlns:ctdrep="http://www.memority.com/citadel/rep/1_0" xmlns:ctdrule="http://www.memority.com/citadel/rule/1_0" xmlns:ctdtnt="http://www.memority.com/citadel/tnt/1_0" xmlns:i18n="http://www.memority.com/toolkit/addons/i18n/1_0" xmlns:kit="http://www.memority.com/toolkit/1_0" xmlns:maiaamcp="http://www.memority.com/maia/amcp/1_0" xmlns:netfilter="http://www.memority.com/toolkit/network-filtering/1_0" xmlns:rule="http://www.memority.com/toolkit/rule/1_0" xmlns:ruleaddon="http://www.memority.com/toolkit/addons/rule/1_0" xmlns:search="http://www.memority.com/toolkit/search-expression/1_0" xmlns:settings="http://www.memority.com/toolkit/addons/settings/1_0" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
   <ctdbum:BusinessPolicy id="identity-triggerWorkFlow-Manager-policy">
      <name>Trigger external workflow after manager update</name>
      <description></description>
      <activation>OBJECT_EVENT</activation>
      <pageSize>10</pageSize>
      <scope type="EXPRESSION" objectKind="IDENTITY">
         <searchExpression>
            <search:Prop op="EQUALS" name="status">
               <value script="false">NORMAL</value>
            </search:Prop>
         </searchExpression>
         <objectTypes>
            <objectType>internal</objectType>
         </objectTypes>
      </scope>
      <active>true</active>
      <actions>
         <action>
            <script><![CDATA[LOG.debug("Start objectEvent-business-ManagerUpdate-policy")
      // Get Manager
      def manager
      def managerId
      def originalManager
      if(OBJECT.type == "internal"){
        manager = FIND.identity().withAttributesProjection("email","preferredLanguage","commonName").withId(OBJECT.manager) as ApiObject
        originalManager = OPERATION.originalObject?.manager
      }
      else{
        manager = FIND.identity().withAttributesProjection("email","preferredLanguage","commonName").withId(OBJECT.budgetManager) as ApiObject
        originalManager = OPERATION.originalObject?.budgetManager
      }
      managerId = manager.id
      if (OPERATION.operation == ObjectOperation.PATCH && managerId && managerId !=originalManager) {
        API_FEATURE.newExecutionFor("identity-auto-updateManager")
                .withObjectId(OBJECT.id)
                .withField("originalManager",originalManager)
                .withPatch()
                .set("manualOngoingAction").value("Manager Update")
                .end()
                .execute()
        LOG.debug("End objectEvent-business-ManagerUpdate-policy")

        ActionOutcome.success()
      }
      return ActionOutcome.noop()]]></script>
         </action>
      </actions>
      <secondaryActions/>
   </ctdbum:BusinessPolicy>
</kit:DataSet>
