Cancel a workflow by requester

This page will explain how to configure the cancellation of a workflow by the requester and how it can be used in Memority portal.

Use Case

Without any explicit configuration a requester cannot cancel its own tasks from the dashboard. However, we offer the configurator the possibility of modifying this behavior to enable this action.

This page will explain how to configure this specific case and how it can be used in Memority portal.

Configuration

Global cases

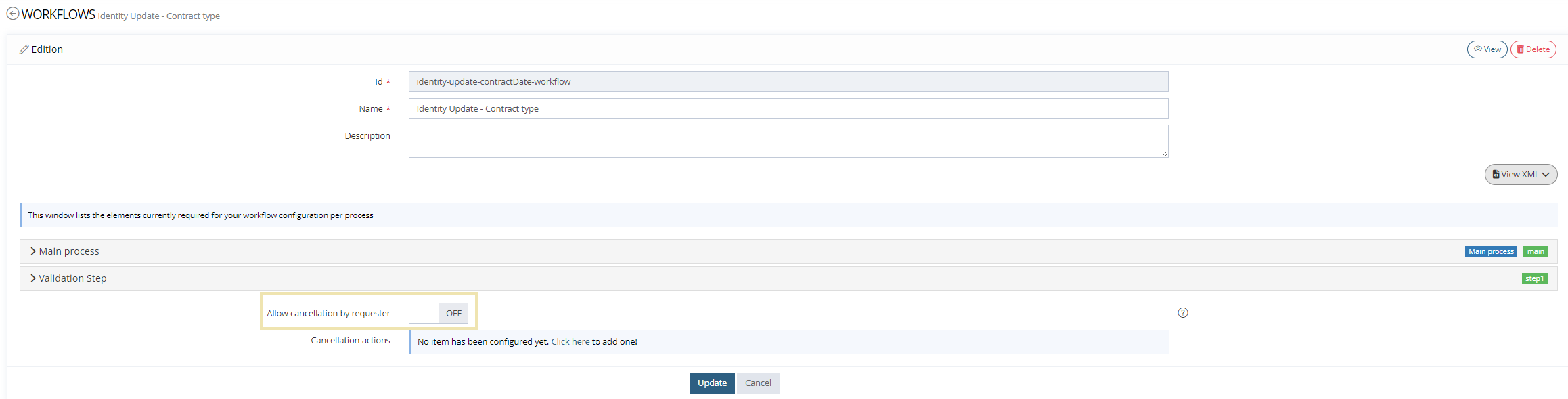

For cases where the behavior is the same for all workflow steps, or if the workflow consists of just one step, there is in the workflow configuration screen, the Allow cancellation by requester parameter that allows the configurator to authorize or not the cancellation of the workflow by the requester himself.

Capture d'écran 2024-05-16 102153-20240516-082331.png — Workflow configuration screen - Cancellation by requester

Other cases

In cases where the behavior is not the same for all workflow steps (one step is cancelable and the next is not), it is possible toset the flag using the API_WORKFLOW.

GROOVY

<scriptTask id="initScriptTask" name="Some Script Task">
	<script>
		<![CDATA[
            API_WORKFLOW.setCancellationByRequesterAllowed(true)
            LOG.info("Can requester cancel its tasks ? " + API_WORKFLOW.isCancellationByRequesterAllowed())
            return ActionOutcome.success()
            ]]>
        </script>
</scriptTask>

If cancellation by requester is no more suitable later in the process, turn the flag off using the same setter method.

Notifications Events

The following Notifications Events are dedicated to the use case of a workflow cancellation by the requester :

Notification event type

Location

Actors

Payload contains ...

CITADEL_WORKFLOW__FEATURE_EXECUTION

BUM

senders

system

recipients

previousApprover, requester, beneficiary

See Identity link types

Variables:

requester
cancellationReason
beneficiary
featureId
workflowId
attributes
originalAttributes
operation
operationComment

CITADEL_WORKFLOW__ROLE_ASSIGNMENT_OPERATION_EXECUTION

BUM

senders

system

recipients

previousApprover, requester, beneficiary

See Identity link types

Variables:

requester
cancellationReason
beneficiary
role
workflowId
roleAssignmentChanges
operation
currentRoleAssignment
operationComment

Identity link types

Possible values for identity link types are :

assignee
candidate

Usage

Workflows can be canceled by the requester from the workflow dashboard:

Workflow Dashboard

	Steps	Preview

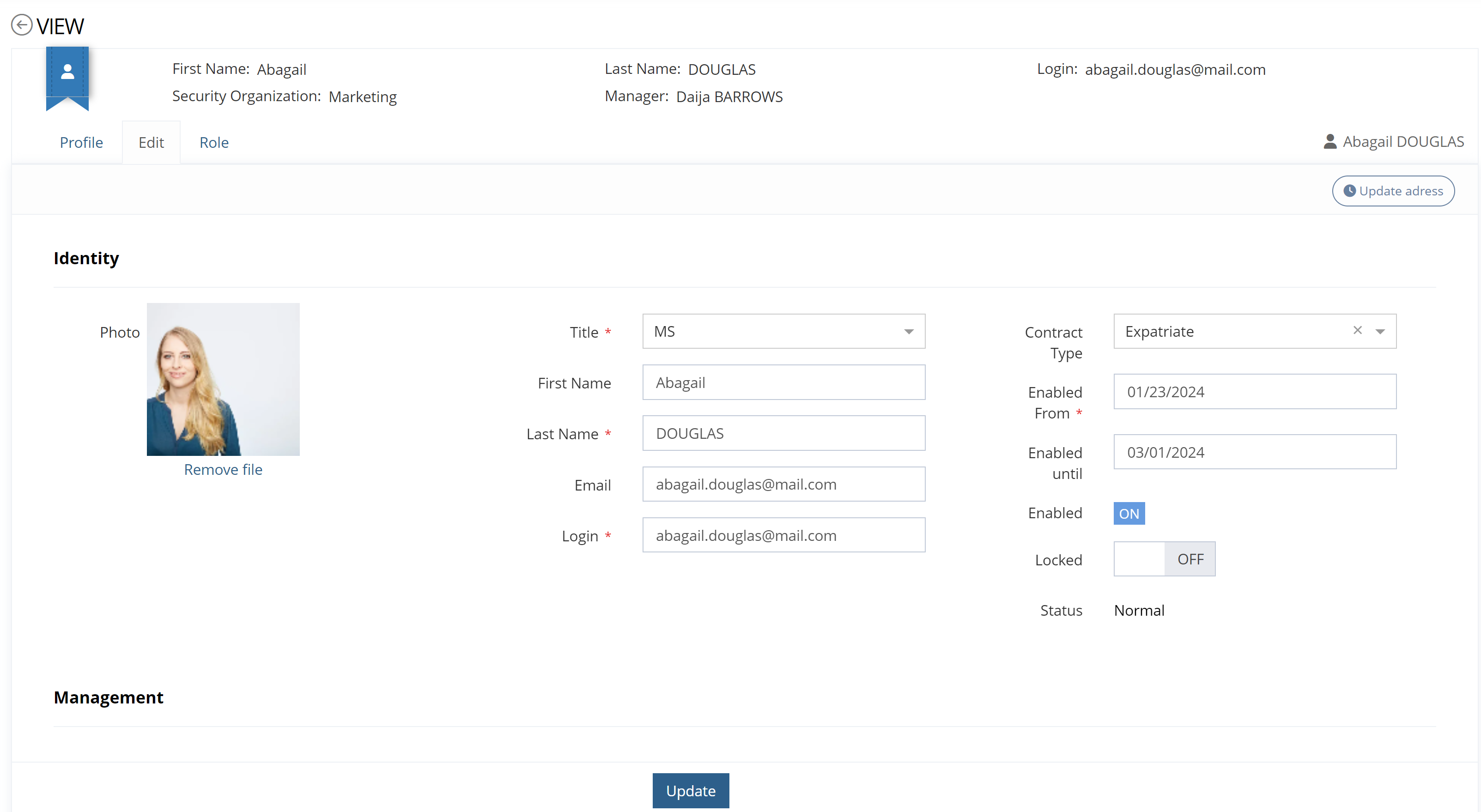

1	As an identity with the right to act on objects, perfom an operation triggering a workflow, for example here as a manager we will update the end contact date of one of the people in our scope.

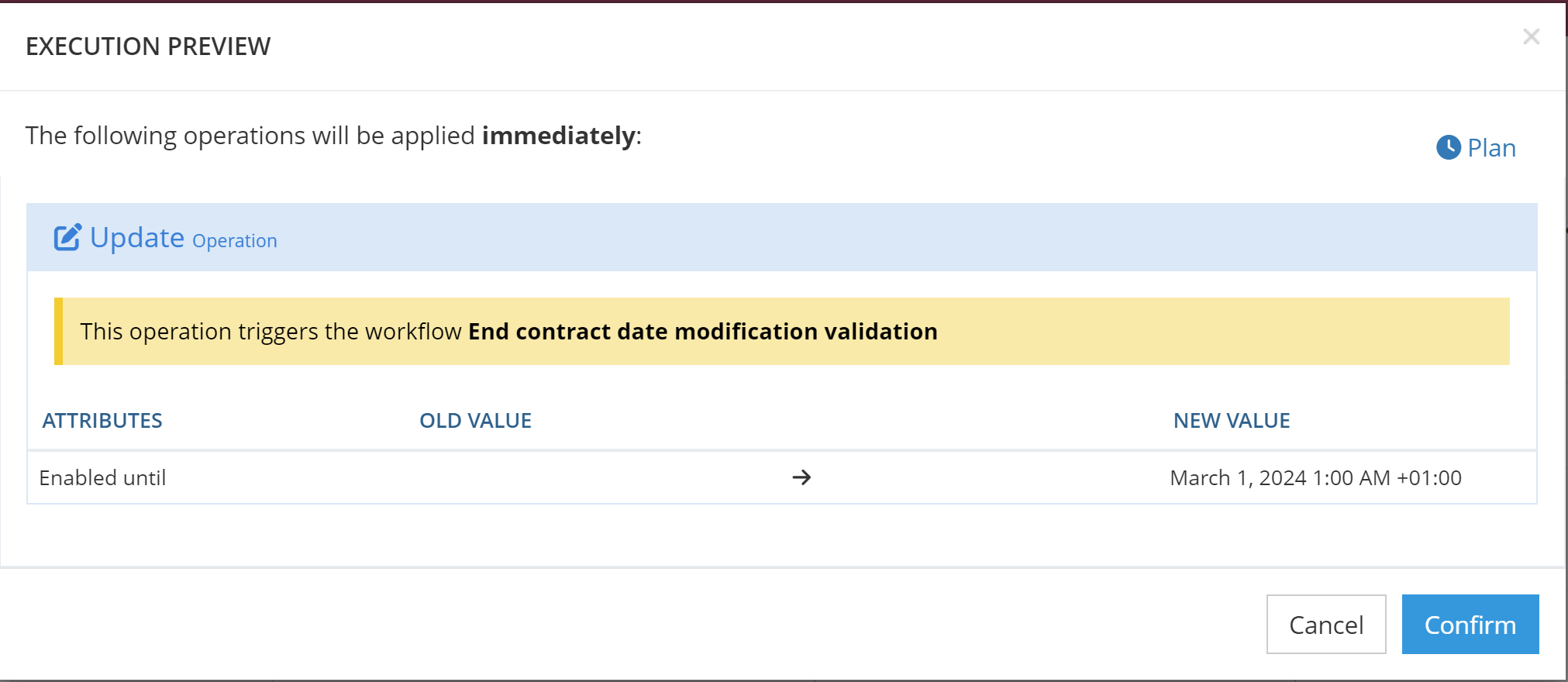

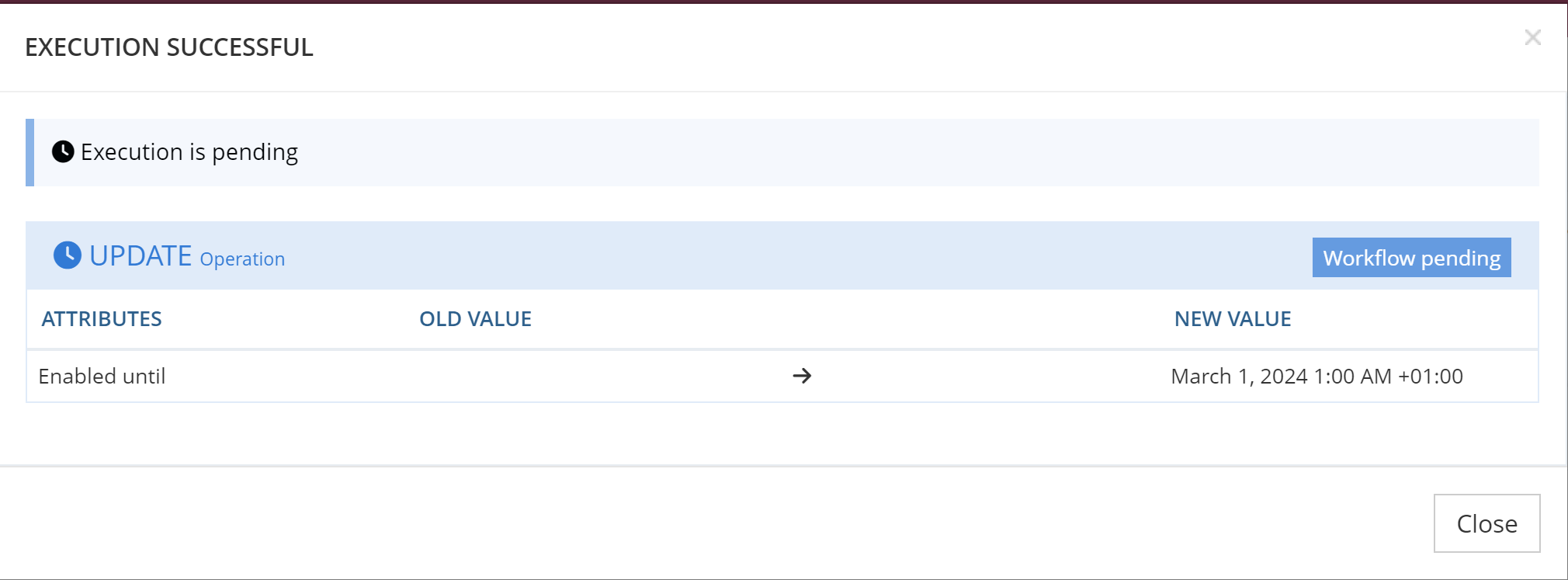

2	Click on the Update button. As configuring, this operation will trigger a workflow (which has been configured to be cancelable by the requester).	After confirmation of the operation, a second pop up is displayed :

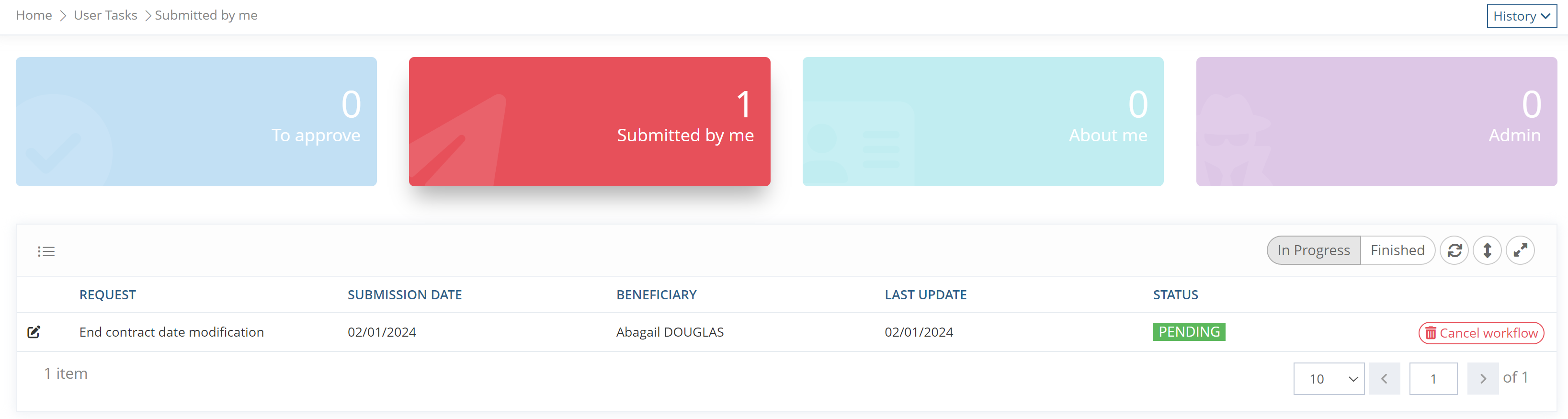

3	When accessing his workflow dahboard, in the submitted by me part, the user task is displayed. And a button is available to Cancel the workflow.

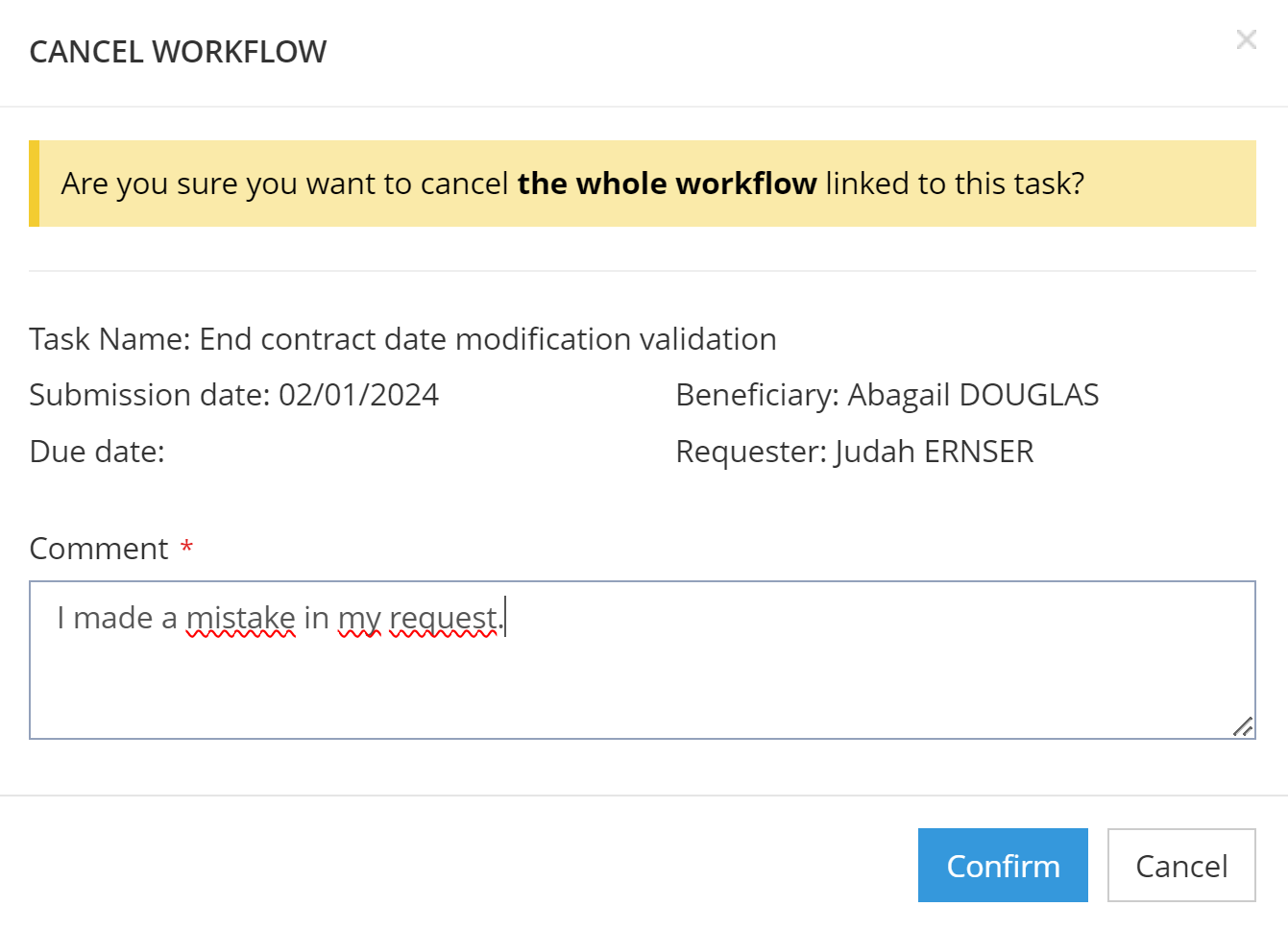

4	If applicable (configuration), enter a comment and Confirm the cancellation.

Role

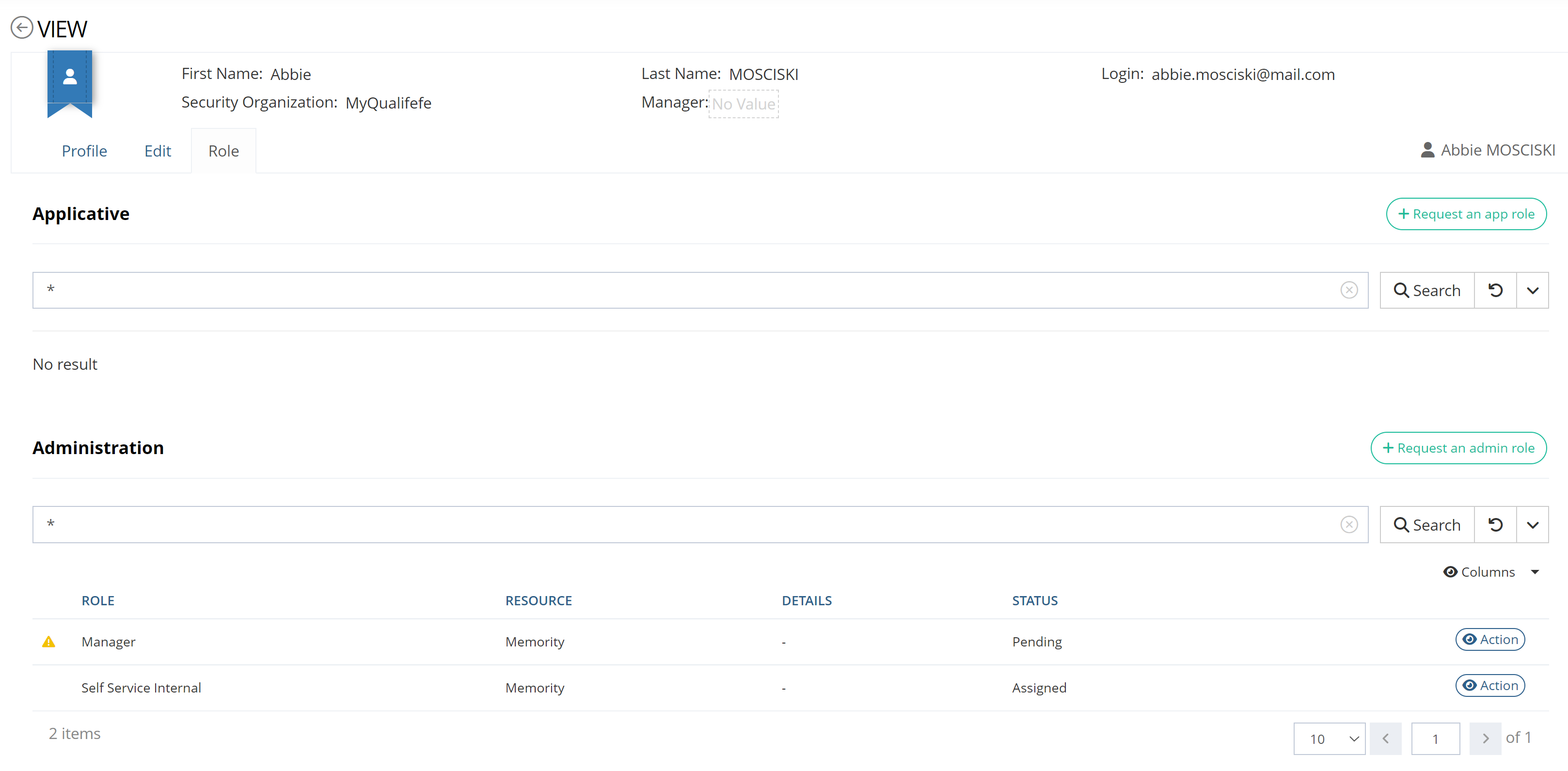

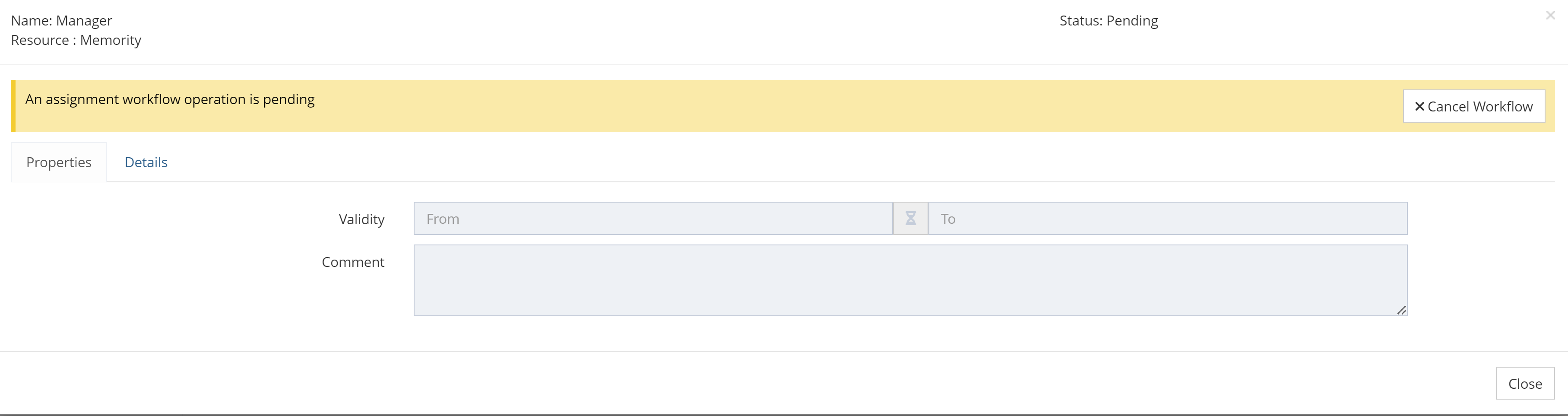

In the case of workflow concerning a role assignment, it can also be cancelled by the requester directly from the beneficiary's role dashboard

Steps

Preview

1

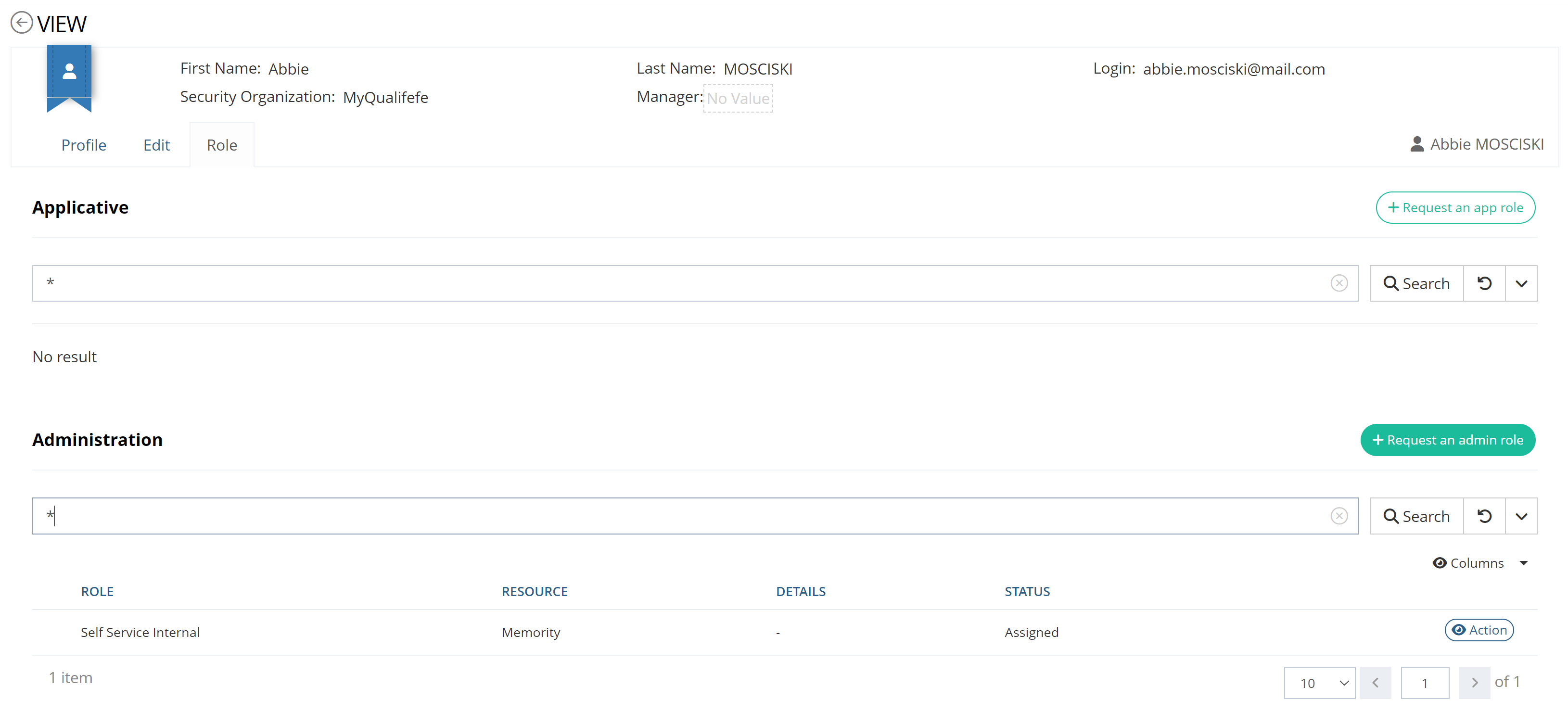

As an identity with the right to act on objects, request a role for another identity (one triggering a workflow which has been configured to be cancelable by the requester).

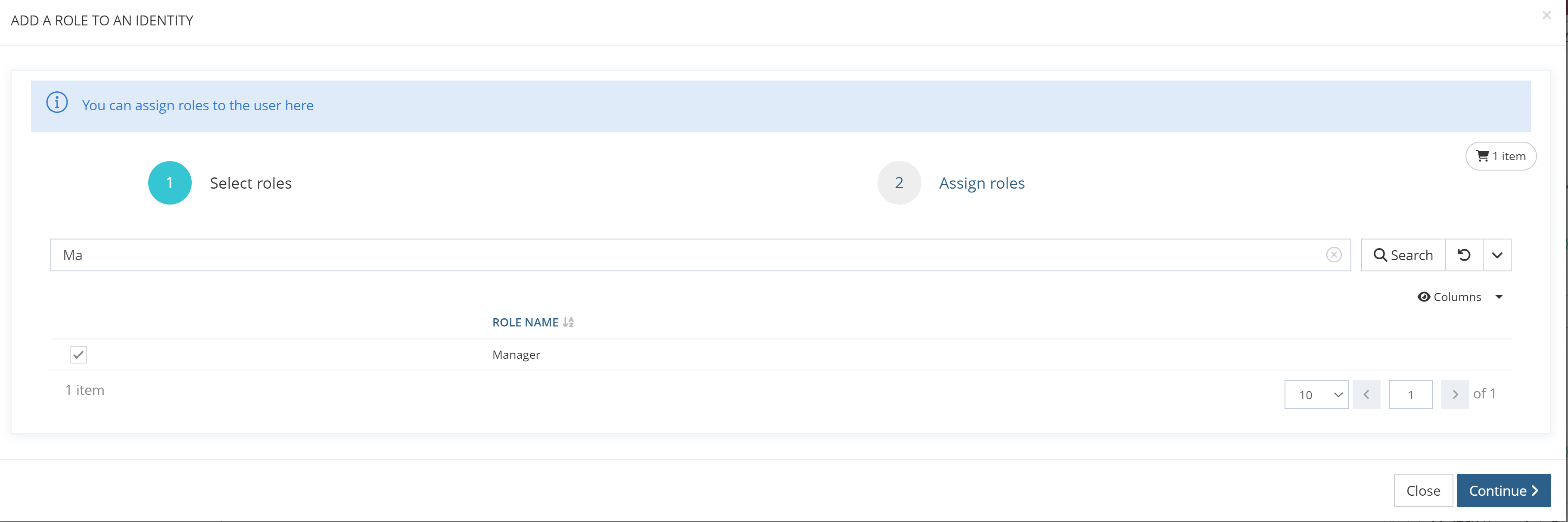

In this example, we have a request button in the workflow dashboard to allow the request of a role :
