Dashboard Widget
Definition
The Dashboard Widget can be used to display and organize reporting items. These items consists of cards that can be added, removed and moved in the dashboard to present information. Those items can be scoped to specific criteria in order to present a synthetic view of a full report.
Configuration
The widget can be declared in any type of Feature but will most likely be more appropriate in a UI_FOR_OBJECT feature, configured as the home page of users.
Properties
Property name | Type | Mandatory | Description | Values (default value in bold) |
|---|---|---|---|---|
items |
| YES | A list of dashboard items. These items represent what the user can add to its dashboard. Note that the item might be filtered if it references something the user has no access to. | - |
initialItems |
| NO | A list of initial items id, presented when the user arrive on the dashboard for the first time. The id values must match the id of the items present in the “items” list. | - |
DashboardItem
Property name | Type | Mandatory | Description | Values (default value in bold) |
|---|---|---|---|---|
id |
| YES | A (unique) id of this item. This id is used in i18n keys, in the preference storage and to reference the initial items. Pick a descriptive name such as “last-authentication-24h”. | - |
widgets |
| YES | A list of Memority widgets. These widgets will constitute the dashboard item and be displayed. The most common usage will be a unique | - |
options |
| NO | Options for the dashboard item. See below. |
DashboardItemOptions
Property name | Type | Mandatory | Description | Values (default value in bold) |
|---|---|---|---|---|
actions |
| NO | A list of action buttons to be displayed in the dashboard item (like links) | - |
width |
| NO | The item width in relative unit from 1 to 12. The dashboard uses a 12 column layout. Exemple: two items of equal width on one row will both have width = 6. For a full width item use width = 12. | 6 |
height |
| NO | The item height in relative unit (about 100px per unit) | 5 |
I18N
The dashboard elements follow an i18n conventions for translations:
Key | Description |
|---|---|
| The name of the item in the “add widget” modal |
| The description of the item in the “add widget” modal |

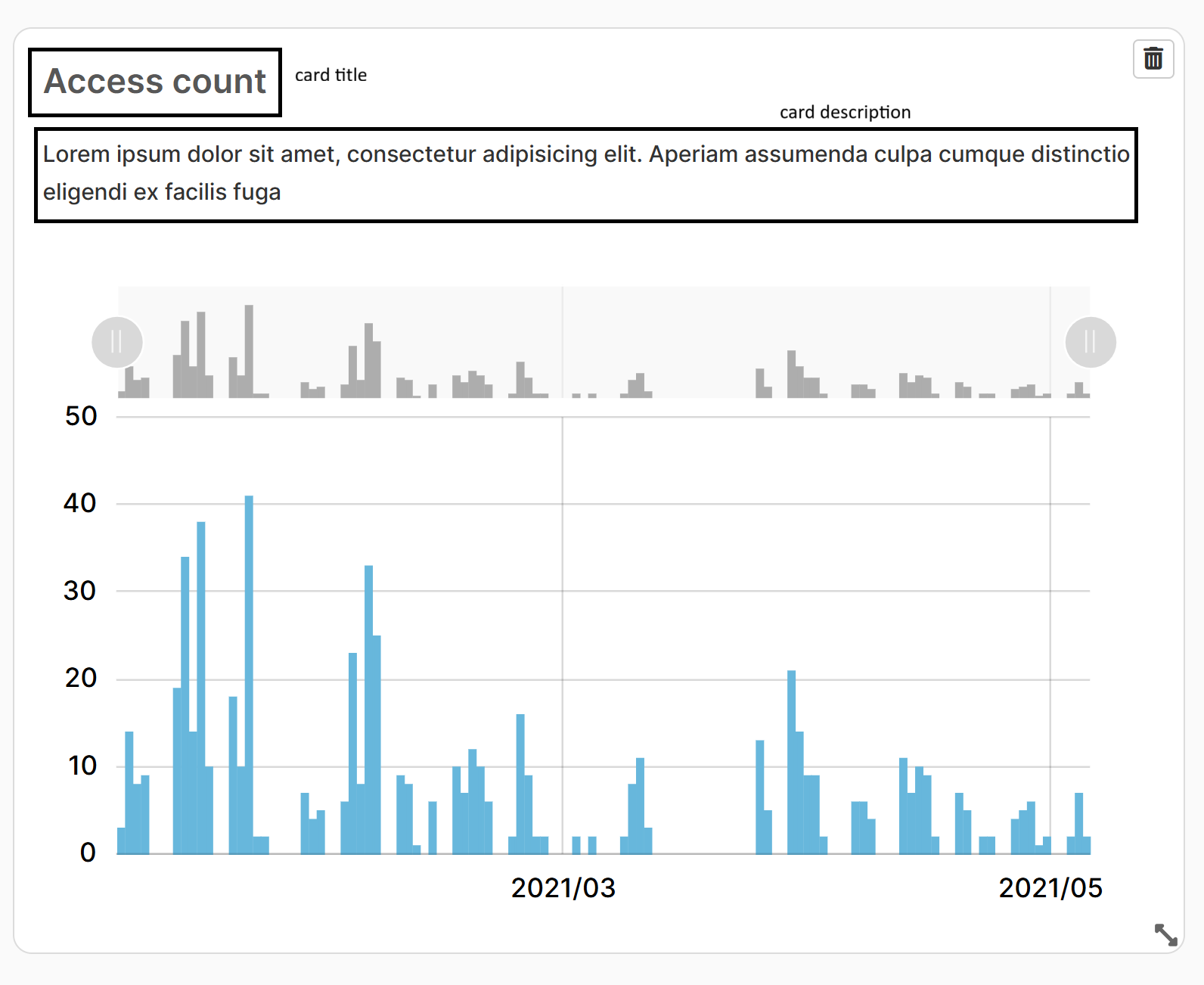

| The card title. If not configured no title is displayed |
| The card descriptio. If not configured no description is displayed. |
Scoping with approaches
Dashboard items will in most cases reference ProxyWidget on which a specific set of options can be applied. These options are called “approaches” on these widgets, allowing for instance to:
Override the criteria of a reporting widget with fixed values
Display specific columns on reporting lists
An approach is always defined as such:
Property | Description |
|---|---|
id | The id of the approach |
value | The value of the approach. This object depends on the widget being targeted. |

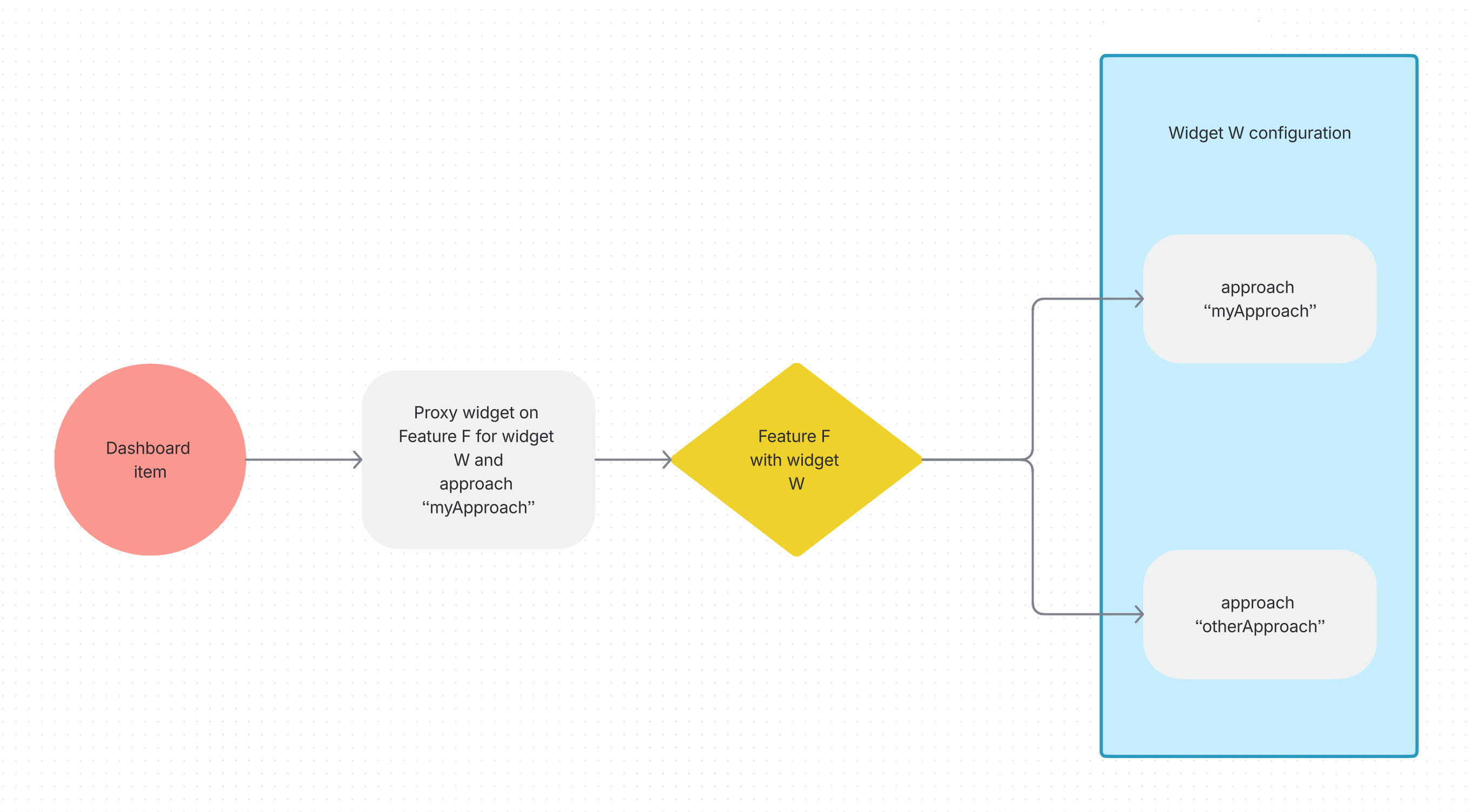

To summarize, a dashboard will most likely work in this way:
Reporting Widgets Scoping
To scope a reporting widget, one can declare approaches on the reporting widget and reference the approach in a proxy widget declared as a dashboard item.
Reporting Widget approach value
Property | Description |
|---|---|
criteria | A list of criteria values.
CODE
|
Example
<!-- In the dashboard widget, declare a proxy widget with approach "first" on the target widget -->
<items>
<item id="reporting-1">
<widgets>
<widget id="proxy-reporting-access-hours-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-access-hours</featureId>
<widgetId>reporting-access-hours-widget</widgetId>
<approach>first</approach>
</config>
</widget>
</widgets>
<!-- In the test_reporting-access-hours Feature, in the reporting-access-hours-widget widget, define the "first" approach -->
<widget id="reporting-access-hours-widget" xsi:type="ctdbum:ReportingWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>false</title>
<approaches>
<approach>
<id>first</id>
<value>
<criteria>
<criterion>
<name>date</name>
<operator>BETWEEN</operator>
<value>P20Y</value>
</criterion>
</criteria>
</value>
</approach>
</approaches>Reporting List Widget Scoping
To scope a reporting list widget, one can declare approaches on the reporting list widget and reference the approach in a proxy widget declared as a dashboard item.
Reporting List Widget approach value
Property | Description |
|---|---|
criteria | A list of criteria values.
XML
|
columns | The columns to display when proxied
XML
|
Example
<!-- In the dashboard widget, declare a proxy widget with approach "first" on the target widget -->
<item id="reporting-2">
<widgets>
<widget id="proxy-reporting-access-hours-list-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-access-hours</featureId>
<widgetId>reporting-access-hours-list-widget</widgetId>
<approach>first</approach>
</config>
</widget>
<!-- In the test_reporting-access-hours Feature, in the reporting-access-hours-list-widget widget, define the "first" approach -->
<widget id="reporting-access-hours-list-widget" xsi:type="ctdbum:ReportingListWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
...
<approaches>
<approach>
<id>first</id>
<value>
<columns>
<column>identity._id</column>
<column>ModuleName</column>
</columns>
<criteria>
<criterion>
<name>date</name>
<operator>BETWEEN</operator>
<value>P20Y</value>
</criterion>
</criteria>
</value>
</approach>
</approaches>Example
<widget id="dashboard-widget" xsi:type="ctdbum:DashboardWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>LG</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<items>
<item id="reporting-1">
<widgets>
<widget id="proxy-reporting-access-hours-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-access-hours</featureId>
<widgetId>reporting-access-hours-widget</widgetId>
<approach>first</approach>
</config>
</widget>
</widgets>
<options>
<actions>
<action id="reporting-access-hours-btn" xsi:type="ctdbum:ButtonWidgetType">
<hidden>false</hidden>
<config>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<borderless>false</borderless>
<circle>false</circle>
<icon>fa fa-chart-simple</icon>
<label>true</label>
<linkTarget>SELF</linkTarget>
<outline>true</outline>
<size>SM</size>
<target xsi:type="ctdbum:ModalTargetType">
<link>feature://test_reporting-access-hours</link>
<modalSize>SM</modalSize>
<onDismiss>NONE</onDismiss>
</target>
</config>
</action>
</actions>
<height>5</height>
<width>12</width>
</options>
</item>
<item id="reporting-2">
<widgets>
<widget id="proxy-reporting-access-hours-list-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-access-hours</featureId>
<widgetId>reporting-access-hours-list-widget</widgetId>
<approach>first</approach>
</config>
</widget>
</widgets>
<options>
<actions/>
<height>5</height>
<width>6</width>
</options>
</item>
<item id="reporting-3">
<widgets>
<widget id="proxy-reporting-pie-chart-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-chart-association</featureId>
<widgetId>reporting-pie-chart-widget</widgetId>
</config>
</widget>
</widgets>
<options>
<actions/>
<height>5</height>
<width>6</width>
</options>
</item>
<item id="reporting-4">
<widgets>
<widget id="proxy-reporting-map-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-map</featureId>
<widgetId>reporting-map-widget</widgetId>
</config>
</widget>
</widgets>
<options>
<actions/>
<height>5</height>
<width>6</width>
</options>
</item>
<item id="reporting-5">
<widgets>
<widget id="proxy-reporting-radar-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-radar-access-hours</featureId>
<widgetId>reporting-access-hours-widget</widgetId>
</config>
</widget>
</widgets>
<options>
<actions/>
<height>5</height>
<width>6</width>
</options>
</item>
<item id="reporting-6">
<widgets>
<widget id="proxy-reporting-counter-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-counter</featureId>
<widgetId>reporting-authentication-counter-widget-2</widgetId>
</config>
</widget>
</widgets>
<options>
<actions/>
<height>5</height>
<width>6</width>
</options>
</item>
<item id="reporting-7">
<widgets>
<widget id="proxy-reporting-timeline-widget" xsi:type="ctdbum:ProxyWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>SM</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>true</title>
<featureId>test_reporting-timeline</featureId>
<widgetId>reporting-timeline-widget</widgetId>
<approach>first</approach>
</config>
</widget>
</widgets>
<options>
<actions/>
<height>5</height>
<width>6</width>
</options>
</item>
</items>
<initialItems>
<item>reporting-7</item>
<item>reporting-6</item>
<item>reporting-5</item>
<item>reporting-2</item>
<item>reporting-3</item>
<item>reporting-1</item>
<item>reporting-4</item>
</initialItems>
</config>
</widget>
