Tags Widget
Definition

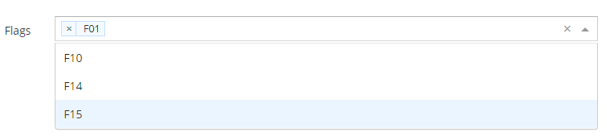

The Tags Edit Widget allows to configure the edit of flags and reserved flags.
Configuration
Properties
Property name | Type | Mandatory | Description | Values |
|---|---|---|---|---|
tags |
| NO | Defines one or several tags. | - |
tags properties
Property name | Type | Mandatory | Description | Values |
|---|---|---|---|---|
tag |
| NO | Allows to list one or several flag values to limit the choice when editing. The following i18n keys can be used to add a functional label to the flags: ui.model.attributes.flags.values.Fxx.label | F01, F02... |
Example
CODE
<widget id="flags" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor>
<editWidget xsi:type="ctdbum:TagsEditWidgetType">
<hidden>false</hidden>
<config>
<required>false</required>
<tags>
<tag>F01</tag>
<tag>F10</tag>
<tag>F14</tag>
<tag>F15</tag>
</tags>
</config>
</editWidget>
</editor>
<label></label>
<lockedInUi>false</lockedInUi>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>true</override>
</config>
<attributeId>flags</attributeId>
</widget>Read Next
