Binary Widget
Definition

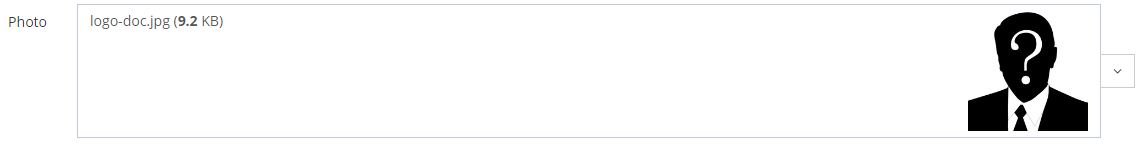

The Binary Edit Widget allows to configure the display/edit of a binary attribute.
Configuration
Properties
Properties name | Type | Mandatory | Description | Values (default value in bold) |
|---|---|---|---|---|
- | NO | Allows to list the allowed image formats. | - | |
maxFileSizeKb |
| NO | Defines the maximum size (in KB) of the imported image. | 5000 |
fileIcon |
| NO | true, false | |
uploadIcon |

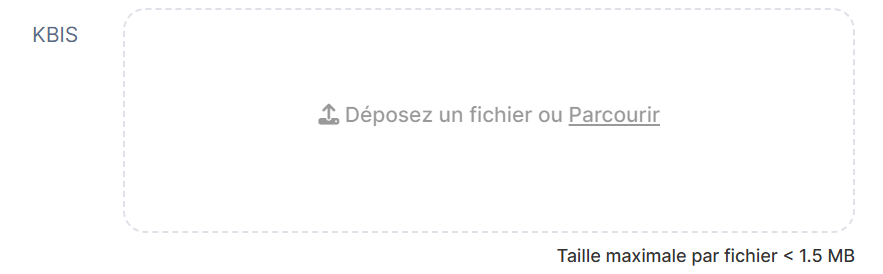

| NO | Allows to display or not the "upload" logo in the field. | true, false |

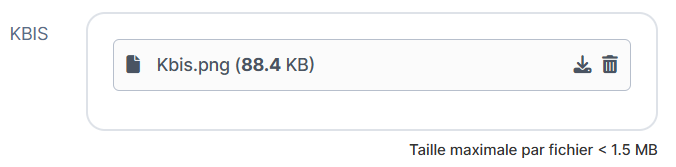

filenameI18nKey |
| NO | An i18n key that can reference the current object attributes in order to name the binary file when downloading it through the widget. Ex:
CODE
(the file extension will be set automatically based on the uploaded file and should not be set as part of the key). Note that a limit of 255 characters will apply to the filename. If left empty, the filename will be the attribute id. | - |
acceptedFileTypes properties
Properties name | Type | Mandatory | Description | Values (default value in bold) | Image | Image Edit | Image Display |
|---|---|---|---|---|---|---|---|
fileType |
| NO | Defines the list image formats. If the user update an unauthorized file, he will be warned by a pop-up. | *, PNG, JPEG... If value = *, all formats will be accepted. |
|
|
|
Example
<widget id="photo" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor>
<editWidget xsi:type="ctdbum:BinaryEditWidget">
<hidden>false</hidden>
<config>
<required>false</required>
<acceptedFileTypes>
<fileType>*</fileType>
</acceptedFileTypes>
<maxFileSizeKb>5000</maxFileSizeKb>
<fileIcon>false</fileIcon>
<uploadIcon>true</uploadIcon>
<filenameI18nKey>tenant.ui.upload.myfilename.title</filenameI18nKey>
</config>
</editWidget>
</editor>
<label></label>
<lockedInUi>false</lockedInUi>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>true</override>
</config>
<attributeId>photo</attributeId>
</widget>Read Next
