Federation Logs Widget

Definition

The Federation Logs Widget allows to view logs related to a Federation.

Usage

Log levels are organized in the following ascending order: ERROR WARN INFO DEBUG TRACE. Log statements made in Rules at or below the selected level will be reported and available in this page.

Search in Logs

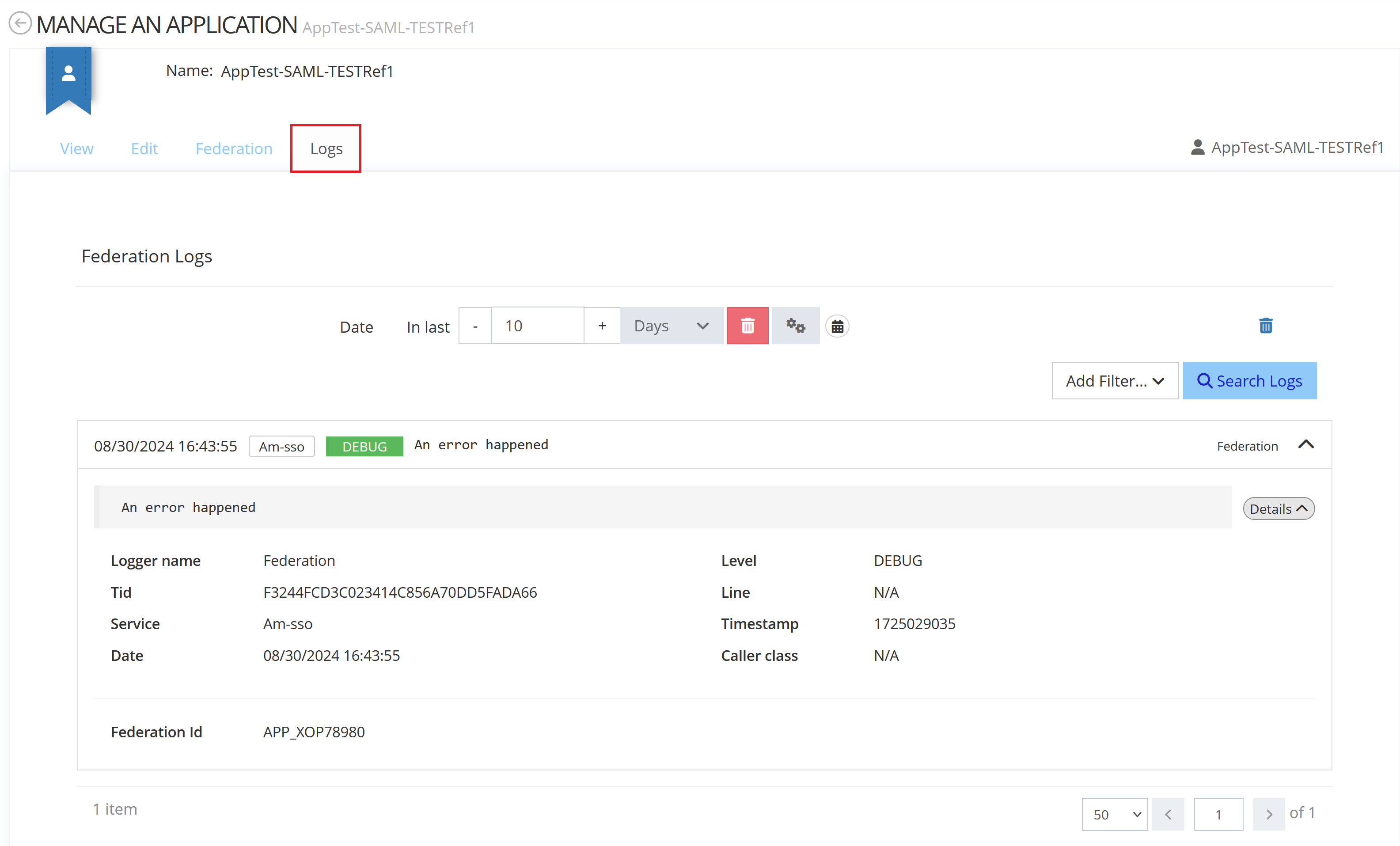

The Logs page provides a list of Log Events organized in reverse chronological order (more recent events are displayed first).
By default, when opening the Logs page, the search is defined by a date.

Actions	Description	Preview

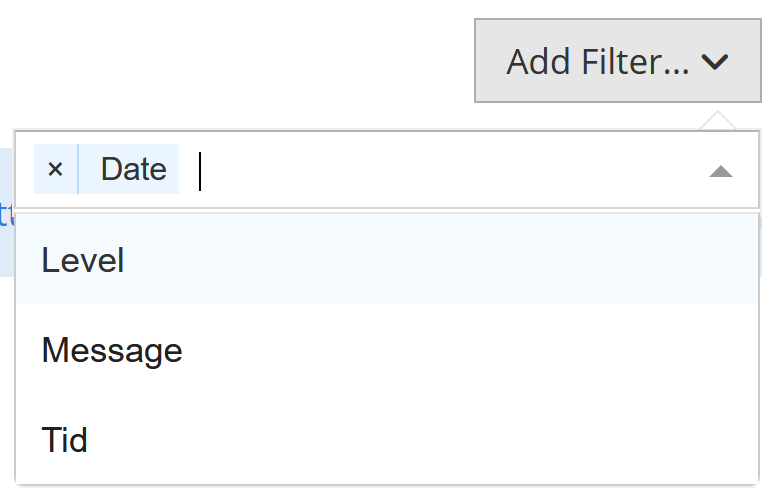

Add filter	You can add one or several filters to search more precisely for a Log Event by clicking on "Add Filter..." button.

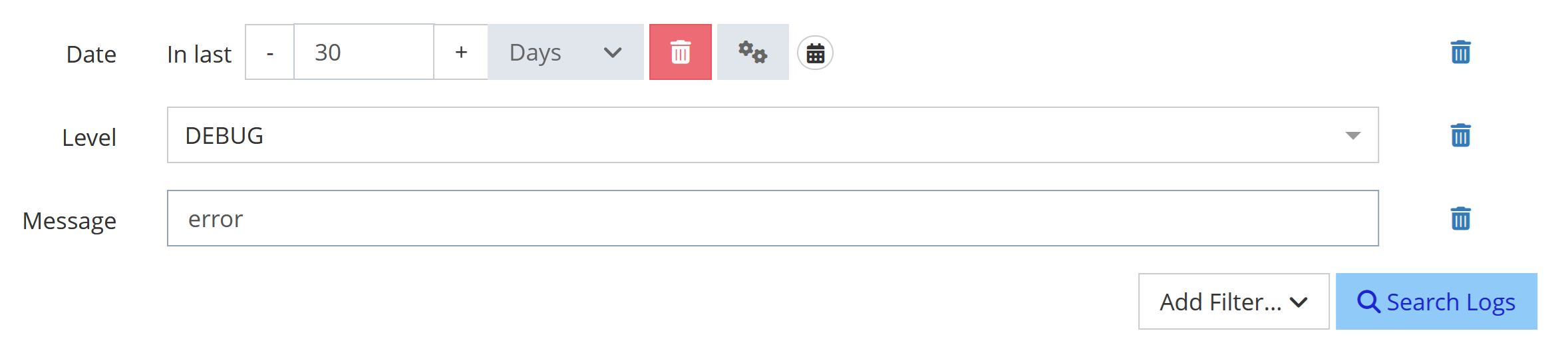

Add filter	Filters will be added at the top of the page. You can delete one or several filters by clicking on the displayed trash icon on each line.
Search for Logs Events	The results are displayed according to the filters.

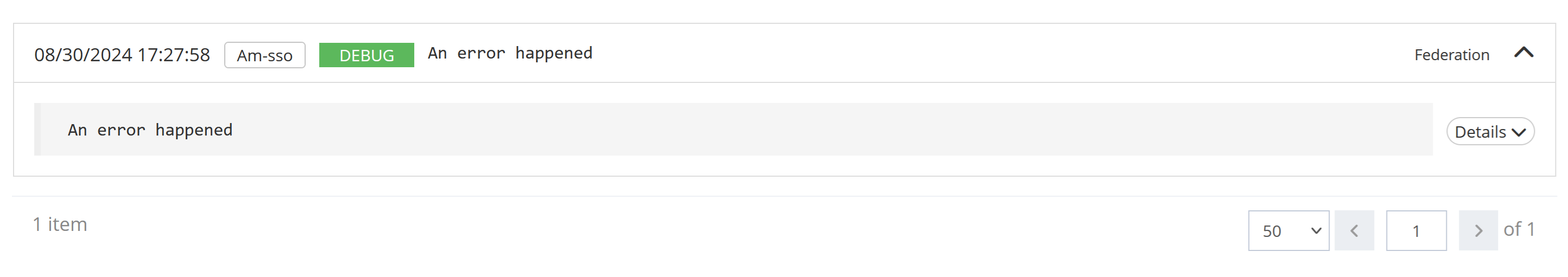

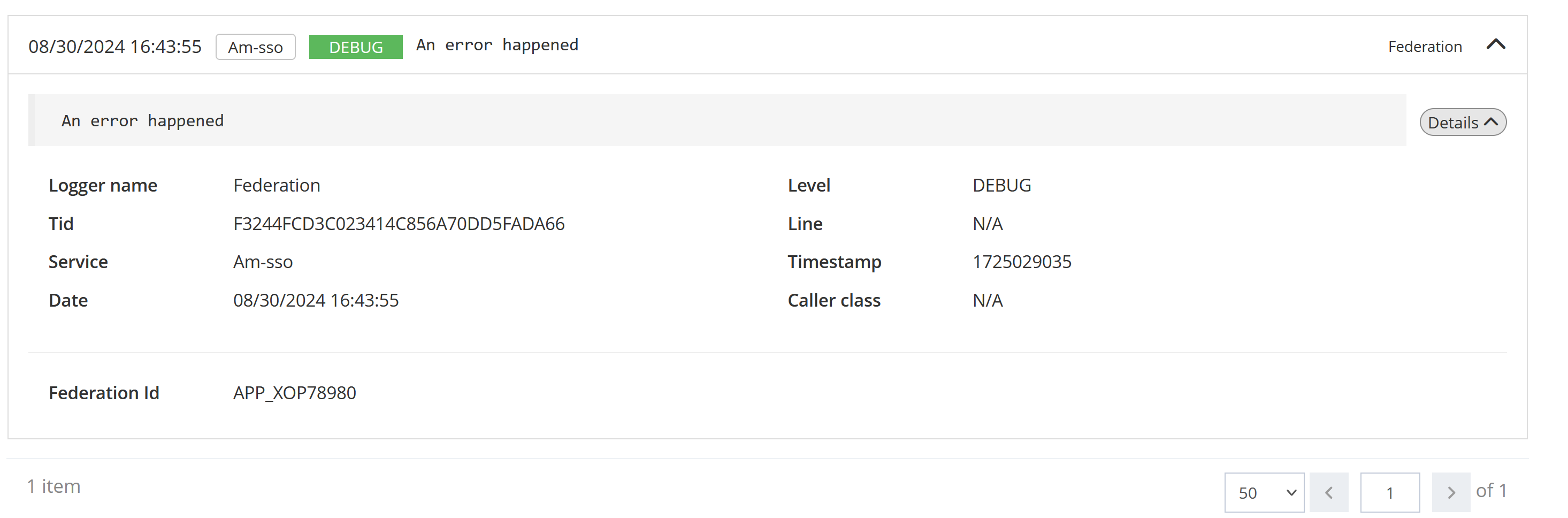

View a Log Event	You can view details of log events by clicking on the arrow displayed on the line. By clicking on the "Details", you can view more information about the event.

Filters

Name	Type	Description
Date	`Date & time`	Allows to search by date (year, month, week, day, hour, minute, second) or by period.
Level	`Enum`	Log level (ERROR, WARN, INFO, DEBUG, TRACE)
Message	`String`	Text to be searched
Tid	`String`	Identifier of the transaction

Configuration

The Federation Logs Widget must be configured to a Feature with an object kind set to RESOURCE.

It’s recommended to use it within a dedicated feature of type UI_FOR_OBJECT or with a button triggering its opening in a modal

Properties

Property name

Type

Mandatory

Description

Values (default value in blod)

bordered

Boolean

NO

Allows to display a border around the Widget.

true, false

title

Boolean

NO

Allows to define a title and a subtitle.

Title and subtitle are defined in the following i18n keys:

tenant.features.role-assignment.title.label
tenant.features.role-assignment.subtitle.label

true, false

Example

Federation Logs Widget Example

CODE

<widget id="federation-log-widget" xsi:type="ctdbum:FederationLogsWidgetType">
    <hidden>false</hidden>
    <displayOptions>
      <modalSize>LG</modalSize>
    </displayOptions>
    <config>
      <bordered>false</bordered>
      <title>true</title>
    </config>
</widget>
