Two widgets are available to edit and display the Federation bound to a Resource :

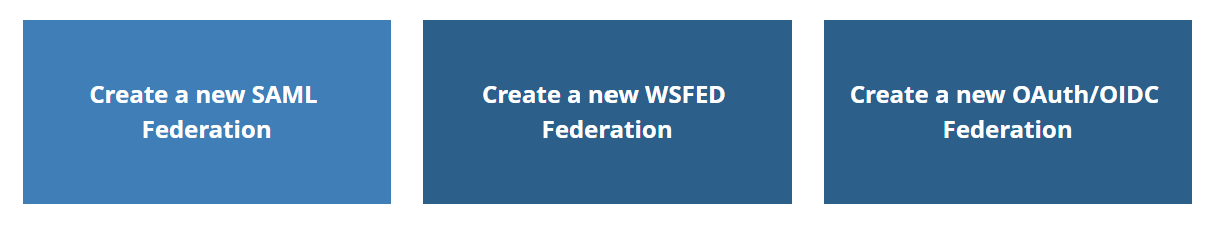

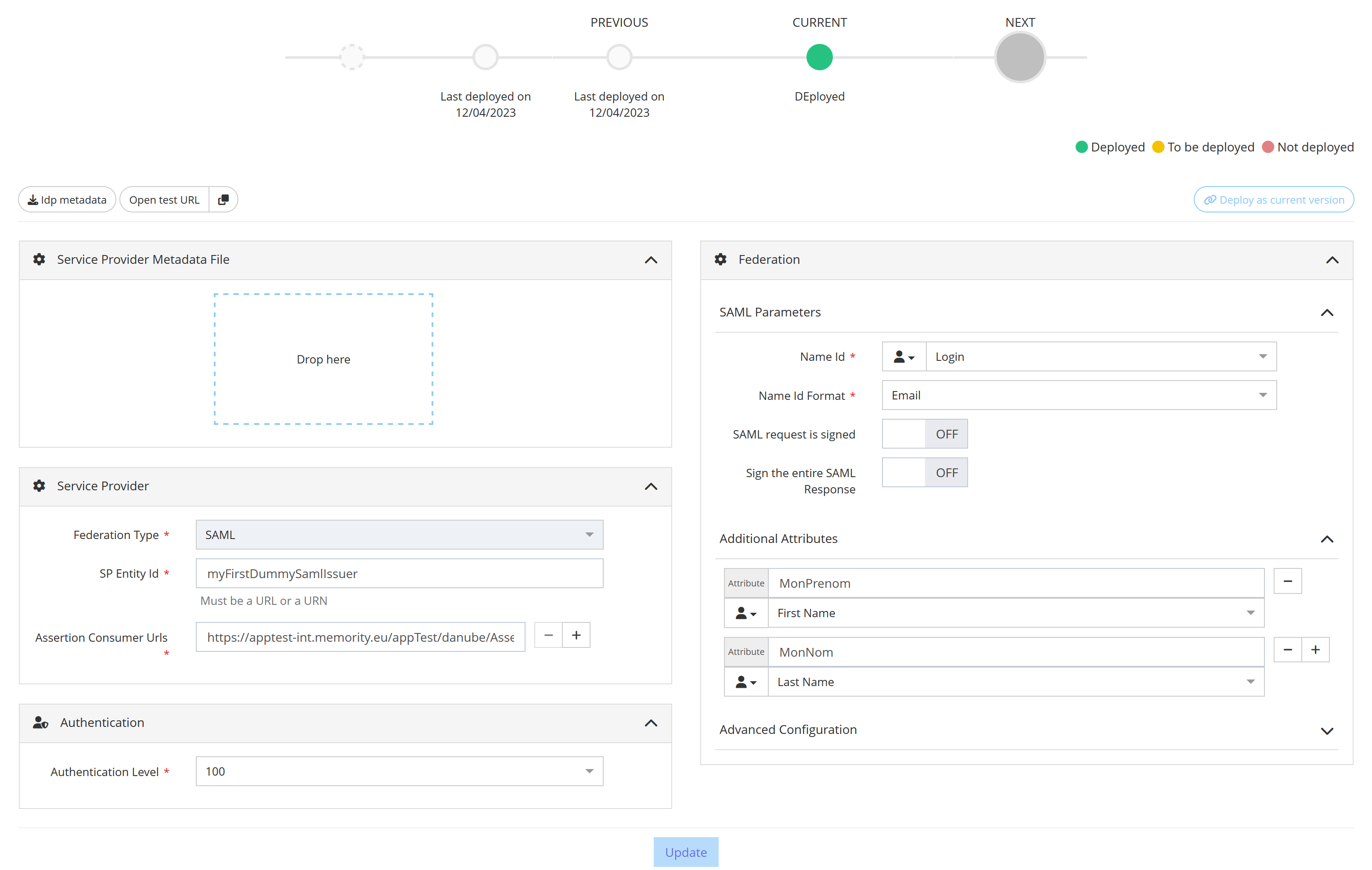

Federation Edit Widget

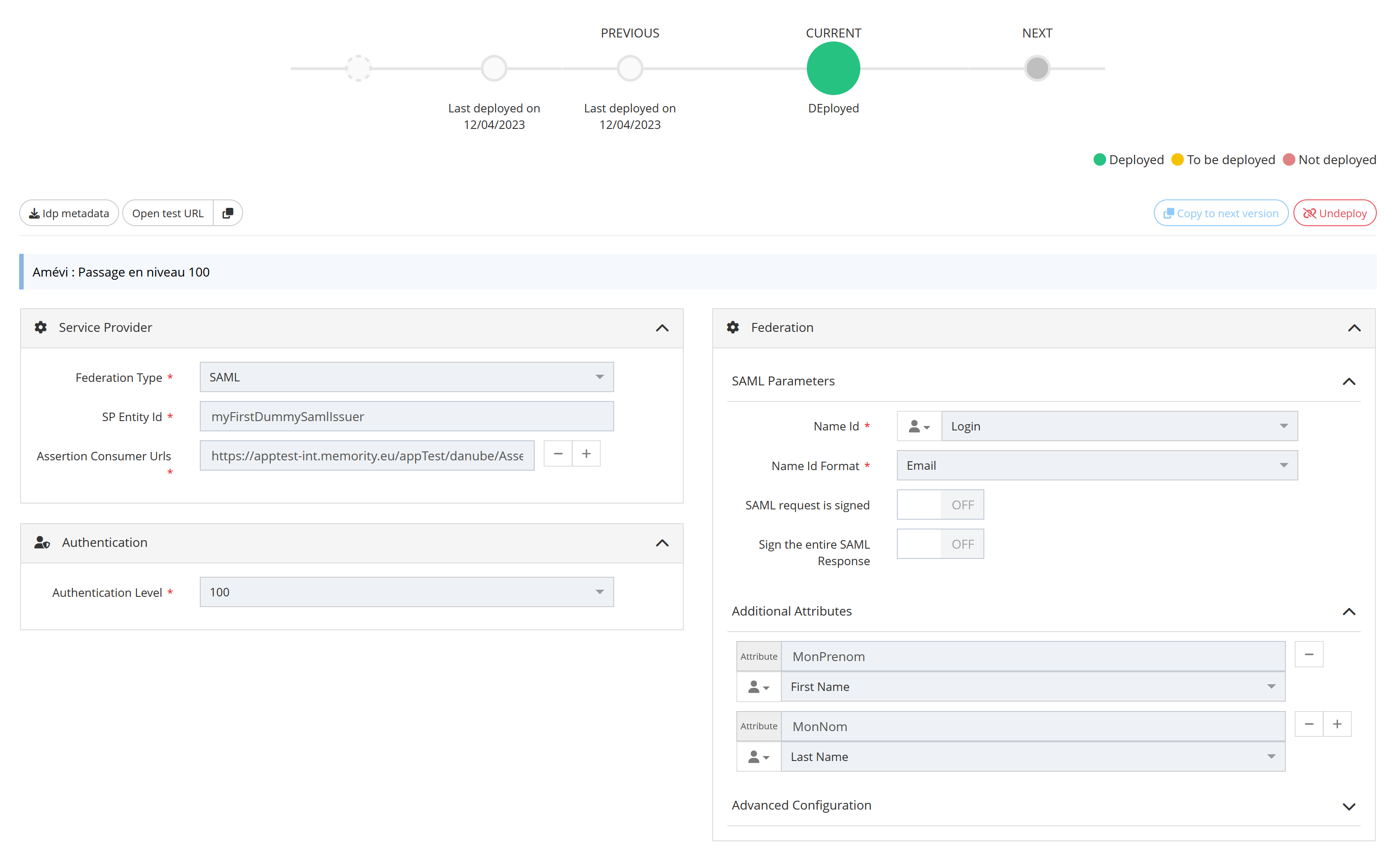

Federation Display Widget

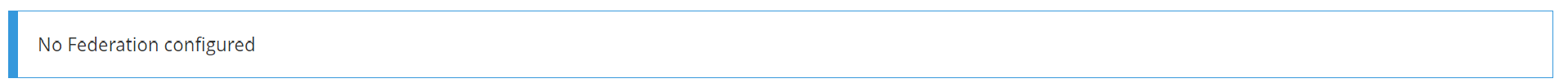

No federation currently configured
No federation currently configured
These widgets are standalone widgets designed to be used in a UI_FOR_OBJECT Feature with the RESOURCE Object kind.
The widget has no specific properties .

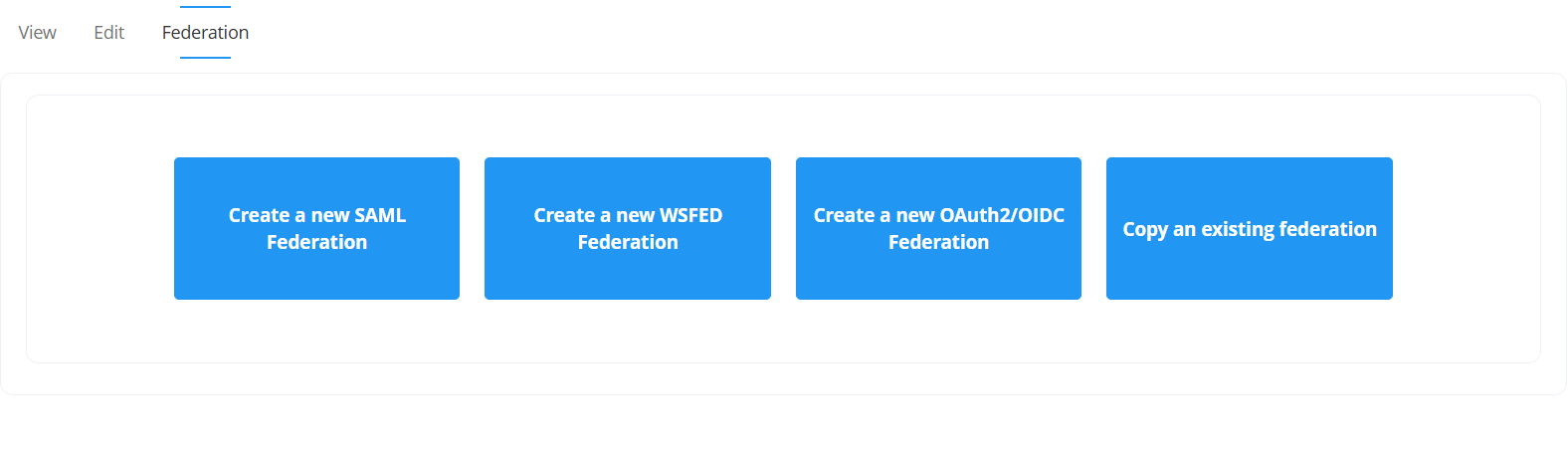

To enable the copy of an existing federation, set the duplicationEnabled attribute to true. We also recommend adding the applicationsOptions attribute to the Federation Edit Widget's config attribute. This isn't mandatory, but it's recommended.
Federation Edit Widget
Federation Display Widget
XML
<widget id="federation-edit" xsi:type="ctdbum:FederationEditWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>LG</modalSize>
</displayOptions>
<config>
<bordered>false</bordered>
<title>false</title>
<applicationOptions>
<scope type="EXPRESSION" objectKind="RESOURCE">
<searchExpression>
<search:And>
<search:Prop op="EQUALS" name="category">
<value script="false">APPLICATION</value>
</search:Prop>
<search:Prop op="IS_NOT_NULL" name="federationType" />
</search:And>
</searchExpression>
<objectTypes />
</scope>
<search>
<actions />
<allowExport>false</allowExport>
<columns>
<column>
<attribute>true</attribute>
<dataKey>id</dataKey>
<dataType>string</dataType>
<dateFormat>DAY_MONTH_YEAR_LONG</dateFormat>
<ellipsis>false</ellipsis>
<hidden>true</hidden>
<sortAs>ALPHA</sortAs>
<sortDirection>ASC</sortDirection>
<sortable>true</sortable>
<sorted>false</sorted>
<timeZoneStrategy>BROWSER</timeZoneStrategy>
<type>general</type>
</column>
<column>
<attribute>true</attribute>
<dataKey>rsrcName</dataKey>
<dataType>string</dataType>
<dateFormat>DAY_MONTH_YEAR_LONG</dateFormat>
<ellipsis>false</ellipsis>
<hidden>false</hidden>
<sortAs>ALPHA</sortAs>
<sortDirection>ASC</sortDirection>
<sortable>true</sortable>
<sorted>true</sorted>
<timeZoneStrategy>BROWSER</timeZoneStrategy>
<type>general</type>
</column>
<column>
<attribute>true</attribute>
<dataKey>federationType</dataKey>
<dataType>string</dataType>
<dateFormat>DAY_MONTH_YEAR_LONG</dateFormat>
<ellipsis>false</ellipsis>
<hidden>false</hidden>
<sortAs>ALPHA</sortAs>
<sortDirection>ASC</sortDirection>
<sortable>false</sortable>
<sorted>false</sorted>
<timeZoneStrategy>BROWSER</timeZoneStrategy>
<type>general</type>
</column>
<column>
<attribute>true</attribute>
<dataKey>federationStatus</dataKey>
<dataType>string</dataType>
<dateFormat>DAY_MONTH_YEAR_LONG</dateFormat>
<ellipsis>false</ellipsis>
<hidden>false</hidden>
<sortAs>ALPHA</sortAs>
<sortDirection>ASC</sortDirection>
<sortable>false</sortable>
<sorted>false</sorted>
<timeZoneStrategy>BROWSER</timeZoneStrategy>
<type>general</type>
</column>
</columns>
<rowClickActions />
<additionalSearchAttributes />
<displayFrozenOperators>true</displayFrozenOperators>
<frozen>NO</frozen>
<modes>
<mode>SIMPLE</mode>
<mode>MULTICRITERIA</mode>
</modes>
<objectReferences />
</search>
</applicationOptions>
<duplicationEnabled>true</duplicationEnabled>
</config>
</widget>
XML
<widget id="federation-display" xsi:type="ctdbum:FederationDisplayWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>LG</modalSize>
</displayOptions>
<config>
<bordered>true</bordered>
<title>true</title>
</config>
</widget>
The widget needs to have the following settings configured in the dataset.
Setting Name
Mandatory
Type
Description
amcp.am.available-authentication-levels
YES
List<Integer>
The authentication levels supported by the tenant.
amcp.am.default-assertion-signature-certificates.saml
NO
String
The default certificate used to sign SAML assertions. Will be pre-selected when creating a SAML Federation.
Must be included in the keys of amcp.am.instances.<instanceName>.configuration.assertion-signature-certificates
amcp.am.default-assertion-signature-certificates.ws-fed
NO
String
The default certificate used to sign WSFED assertions. Will be pre-selected when creating a WSFED Federation.
Must be included in the keys of amcp.am.instances.<instanceName>.configuration.assertion-signature-certificates
amcp.am.federation-reporting-collection
YES
String
Identifier of reporting configuration containing federations.
amcp.am.federation-mapping-reporting-collection
YES
String
Identifier of reporting configuration containing federation mappings.
amcp.am.certificate.expiration.warning-period
YES
String
Period prior to certificate expiration displaying a warning message on the concerned federations.
Some i18n keys are dependent on the configuration and must be configured manually.
