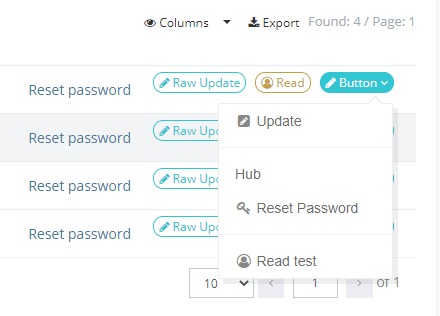

The Button Dropdown Widget allows to display a button on a feature with a dropdown list in which there are several buttons, allowing to redirect the user to other features.
This Widget has the same properties as the Button Widget but includes other properties to define the dropdown list (see below).
Property name
Type
Mandatory
Description
Values (default value in bold)
entries
-
NO
Allows to define the list of redirection to features.
-
Property name
Type
Mandatory
Description
Values (default value in bold)
entry
-
NO
Allows to define properties of each redirection.
This tag is configured as many times as we want to add links.
-
entry properties Each entry will have the following configuration:
Property name
Type
Mandatory
Description
Values (default value in bold)
authenticationLevelSufficient
Boolean
NO
Used to define if the feature is "sensitive" or not.
If true, to access the Feature, the user will have to upgrade his/her authentication level (see settings BUM).
true, false
divider
Boolean
NO
Allows to organize the dropdown list by inserting a dividing line after the link.
true, false
icon
String
NO
Used to define the icon to be displayed inside the button.
For available icons, see https://fontawesome.com/v4.7.0/icons/
fa fa-"name of the icon"
id
String
NO
Used to define the id of the feature.
-
target
ButtonTargetSupport
NO
If no target is defined, the button will have no action.
Used to define the redirection of the user to another feature.
This is a polymorphic property that can be of three different types:
Allows to configure a link that will open in the current tab or a new tab.
The “target” property can take two values:
SELF = open link in same tab
NEW_TAB = open link in a new tab
XML
<target xsi:type="ctdbum:LinkTargetType">
<link>feature://test_user-card-update/{dataKey.id}</link>
<target>SELF | NEW_TAB</target>
</target> Open a Widget in a modal dialog (for such an action as: reset a password, role dashboard, ...).
The size of the dialog can be controlled by defining a display option on the widget (modalSize : XS ,SM,LG)
XML
<target xsi:type="ctdbum:ModalWidgetTargetType">
<widgetToOpen id="role-dashboard" xsi:type="ctdbum:RoleDashboardWidgetType">
...
</widgetToOpen>
</target> Allows to configure a link that will open in a modal dialog. It is similar to the widgetToOpen case but the modal is fully routable using the (secondary:…) url pattern.
The “onDismiss” property control the behaviour of the primary route (the one behind the modal) after the modal is dismissed.
NONE = Do nothing
REFRESH = Refresh the primary route
XML
<target xsi:type="ctdbum:ModalTargetType">
<link>feature://test_user-card-read/{dataKey.id}</link>
<modalSize>LG</modalSize>
<onDismiss>NONE</onDismiss>
</target>
For a link to a feature:
feature://<featureId>/{dataKey.id }
For a hub Feature: feature://user-hub.user-card-read/{dataKey.id }
For a link to a user task:
task://<action>/<id>
task://to-approve/<taskInstanceId>
task://about-me/<operationId>
task://submitted-by-me/<operationId>
task://admin/<operationId>
Code
Link configuration
CODE
<action id="btn-dropdown" xsi:type="ctdbum:ButtonDropdownWidgetType">
<hidden>false</hidden>
<config>
<align>LEFT</align>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<borderless>false</borderless>
<circle>true</circle>
<color>green</color>
<icon>fa fa-pencil</icon>
<label>true</label>
<link>feature://user-raw-update/{routeObjectId}</link>
<outline>true</outline>
<size>XS</size>
<entries>
<entry>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<divider>true</divider>
<icon>fa fa-pencil-square</icon>
<id>user-card-update</id>
<target xsi:type="ctdbum:LinkTargetType">
<link>feature://user-card-update/{routeObjectId}</link>
<target>SELF | NEW_TAB</target>
</target>
</entry>
</entries>
</config>
</action>
Widget To Open configuration
CODE
<action id="btn-dropdown" xsi:type="ctdbum:ButtonDropdownWidgetType">
<hidden>false</hidden>
<config>
<align>LEFT</align>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<borderless>false</borderless>
<circle>true</circle>
<color>green</color>
<icon>fa fa-pencil</icon>
<label>true</label>
<link>feature://user-raw-update/{routeObjectId}</link>
<outline>true</outline>
<size>XS</size>
<entries>
<entry>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<divider>true</divider>
<icon>fa fa-key</icon>
<id>reset-password</id>
<target xsi:type="ctdbum:ModalWidgetTargetType">
<widgetToOpen id="reset-password" xsi:type="ctdbum:ResetPasswordWidgetType">
<hidden>false</hidden>
<displayOptions>
<modalSize>LG</modalSize>
</displayOption>
<config>
<bordered>false</bordered>
<title>true</title>
<securityQuestions>true</securityQuestions>
<securityQuestionsCount>2</securityQuestionsCount>
<manualPasswordEntry>true</manualPasswordEntry>
<autogeneratedPasswordEntry>false</autogeneratedPasswordEntry>
<sendPasswordEmail>true</sendPasswordEmail>
<sendPasswordEmailNotificationId>password_generated_email</sendPasswordEmailNotificationId>
<sendPasswordEmailOverride>true</sendPasswordEmailOverride>
<sendPasswordSms>true</sendPasswordSms>
<sendPasswordSmsNotificationId>password_generated_sms</sendPasswordSmsNotificationId>
<sendPasswordSmsOverride>false</sendPasswordSmsOverride>
<sendResetLinkEmail>true</sendResetLinkEmail>
<sendResetLinkEmailIntent>password_reset</sendResetLinkEmailIntent>
<sendResetLinkEmailNotificationId>password_reset_link</sendResetLinkEmailNotificationId>
<sendResetLinkEmailOverride>true</sendResetLinkEmailOverride>
<sendResetLinkLifetime>PT30M</sendResetLinkLifetime>
<requirePasswordChange>true</requirePasswordChange>
<style>INLINE</style>
</config>
</widgetToOpen>
</target>
</entry>
</entries>
</config>
</action> Modal target type
CODE
<action id="btn-dropdown" xsi:type="ctdbum:ButtonDropdownWidgetType">
<hidden>false</hidden>
<config>
<align>LEFT</align>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<borderless>false</borderless>
<circle>true</circle>
<color>green</color>
<icon>fa fa-pencil</icon>
<label>true</label>
<link>feature://user-raw-update/{routeObjectId}</link>
<outline>true</outline>
<size>XS</size>
<entries>
<entry>
<authenticationLevelSufficient>false</authenticationLevelSufficient>
<divider>true</divider>
<icon>fa fa-pencil-square</icon>
<id>user-card-update</id>
<target xsi:type="ctdbum:ModalTargetType">
<link>feature://user-card-update/{routeObjectId}</link>
<modalSize>SM</modalSize>
<onDismiss>NONE</onDismiss>
</target>
</entry>
</entries>
</config>
</action>
