Definition A Column allows, inside a Section, to arrange elements by integrating one or several Widgets.
The number of Columns must match with the specified layout in the Section.

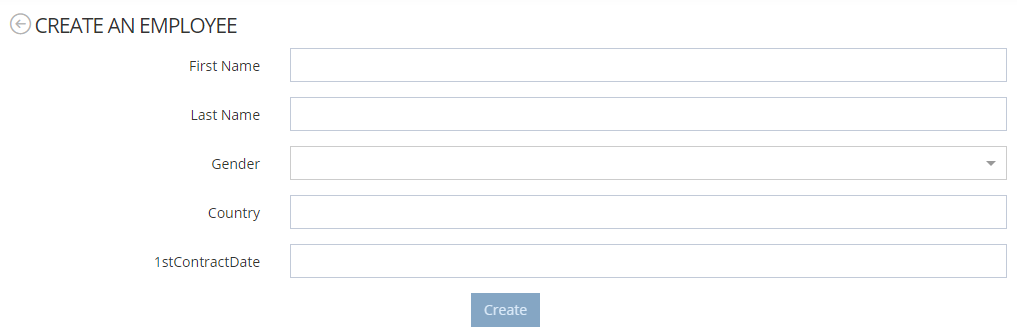

1 column

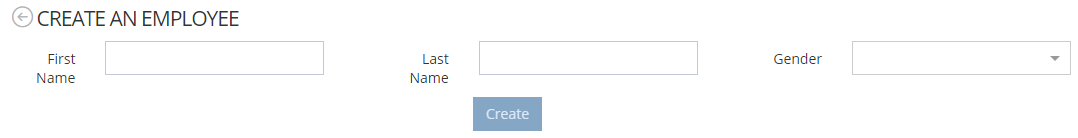

3 columns
Configuration Properties Property name
Type
Mandatory
Description
columns
-
YES
Allows to configure Columns.
column
-
YES
Allows to configure one or several Widget(s) will be displayed on the Column.
widgets
-
YES
Allows to configure Widget(s).
Example 1 column
3 columns
CODE
<screen>
<views>
<view>
<sections>
<section id="test-section-1">
<layout>SINGLE</layout>
<columns>
<column>
<widgets>
<widget id="firstName" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>First Name</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>firstName</attributeId>
</widget>
<widget id="lastName" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>Last Name</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>lastName</attributeId>
</widget>
<widget id="gender" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>Gender</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>gender</attributeId>
</widget>
<widget id="country" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>Country</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>country</attributeId>
</widget>
<widget id="1stContractDate" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>1stContractDate</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>1stContractDate</attributeId>
</widget>
</widgets>
</column>
</columns>
</section>
</sections>
</view>
</views>
</screen>
CODE
<screen>
<views>
<view>
<sections>
<section id="test-section-1">
<layout>THREE_EQUAL</layout>
<columns>
<column>
<widgets>
<widget id"firstName" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>First Name</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>firstName</attributeId>
</widget>
</widgets>
</column>
<column>
<widgets>
<widget id"lastName" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>Last Name</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>lastName</attributeId>
</widget>
</widgets>
</column>
<column>
<widgets>
<widget id"gender" xsi:type="ctdbum:AttributeEditorWidgetType">
<hidden>false</hidden>
<config>
<editor/>
<label>Gender</label>
<mode>READ_WRITE</mode>
<multiValued>false</multiValued>
<override>false</override>
</config>
<attributeId>gender</attributeId>
</widget>
</widgets>
</column>
</columns>
</section>
</sections>
</view>
</views>
</screen>
