Fragments

Fragments let you add extra UI components to the login interface.

This guide explains how to structure and position fragments to customize your login page.

Fragments, also called custom elements, let you add extra UI components (e.g., buttons, messages or links) to the login interface.

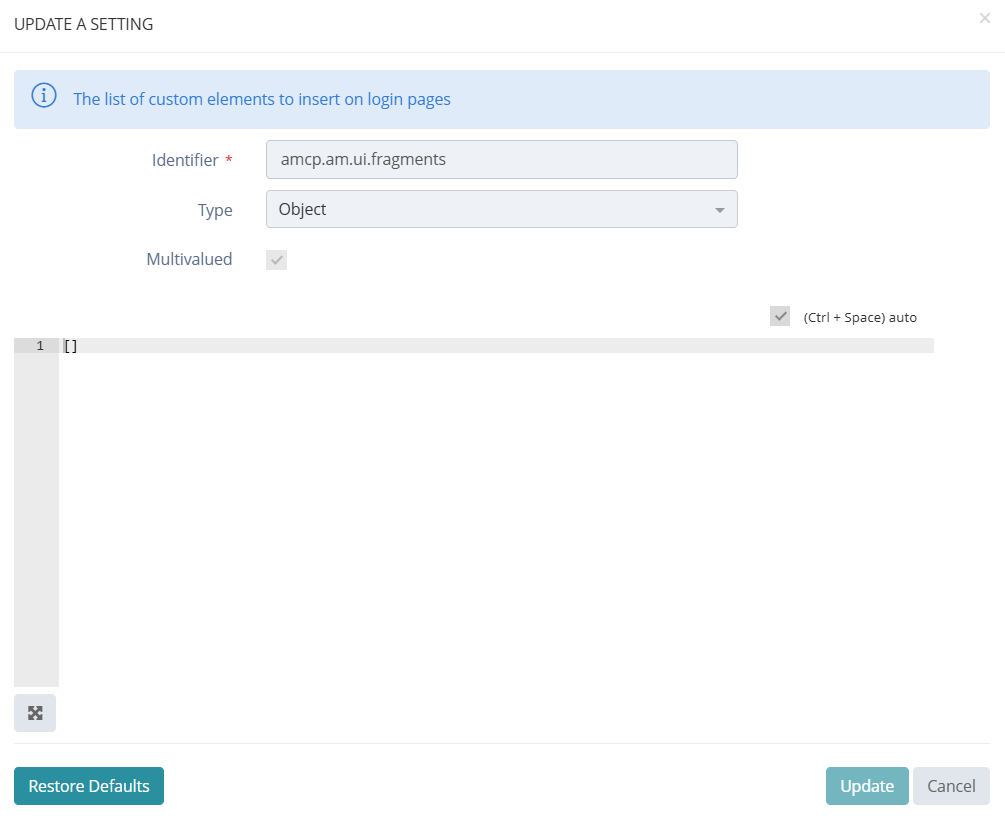

To configure fragments, go to System → Settings → Access Service → amcp.am.ui.fragments in the Admin Portal.

Each fragment block includes a unique id and specifies a position that defines where the fragment content appears on the login interface. You can add one or more items to each fragment block, and they will display together in the chosen location.

Configuration

Fragment Format

Each fragment includes a main container and one or more items. The table below lists the available fragment properties.

Property	Type	Mandatory	Description
position	`enum`	MANDATORY	Defines the position of the fragment on authentication pages.
id	`string`	OPTIONAL	HTML ID of the container element.
style	`string`	OPTIONAL	Inline CSS styles to apply to the container.
classes	`string`	OPTIONAL	CSS classes to apply to the container.
items	`list`	OPTIONAL	One or more items rendered inside the container.

Automatic Generation of Internal Base URLs

Fragments support automatic generation of tenant-specific base URLs for internal links.
You can use the following variables inside href or html fields to dynamically generate URLs.

Variable	Generated Value	Description
`{{ENV.usrBaseUrl}}`	`{IM_base_URL}/portal/{tenant}`	Base URL of the User Portal (USR).
`{{ENV.admBaseUrl}}`	`{IM_base_URL}/admin/{tenant}`	Base URL of the Admin Portal (ADM).
`{{ENV.ssoBaseUrl}}`	`{AM_base_URL}/`	Base URL of the AM / SSO entry point.

Items

Each item inside a fragment defines a specific element to display. The table below lists the available item properties.

Property	Type	Mandatory	Description
type	`enum`	MANDATORY	Defines the item type: `LINK` `BUTTON_PRIMARY` `BUTTON_SECONDARY` `HTML`
id	`string`	OPTIONAL	HTML ID of the item.
style	`string`	OPTIONAL	CSS style of the item.
classes	`string`	OPTIONAL	CSS classes of the item.
i18n	`string`	MANDATORY (if applicable)	Translation key. Prerequisite Define the key in the Translations section of the Admin Portal for each supported language.
href	`string`	MANDATORY (if applicable)	Target link.
target	`enum`	OPTIONAL	`SELF`: The link opens in the same tab or window. `NEW_TAB`: The link opens in a new browser tab. Default value: `SELF`
html	`string`	OPTIONAL	Contains raw HTML content.

Positions

position indicates where to place the fragment on authentication pages.
Each position name follows a convention based on the page layout and the UI structure.

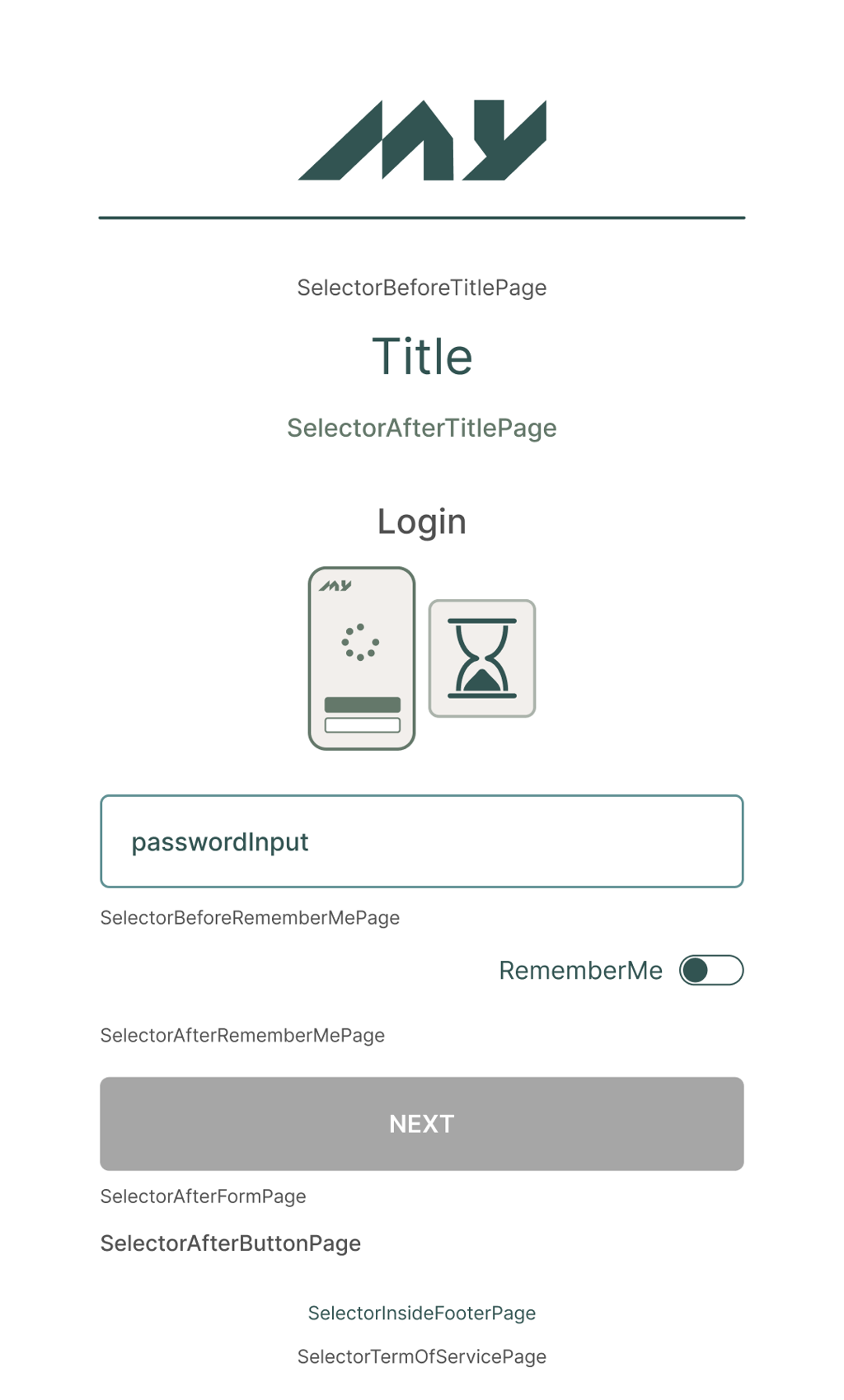

Selector Page

Main login page where the user connects to their tenant.

Position
SelectorBeforeTitlePage
SelectorAfterTitlePage
SelectorBeforeRememberMePage
SelectorAfterRememberMePage
SelectorAfterFormPage
SelectorAfterButtonPage
SelectorInsideFooterPage
SelectorTermOfServicePage

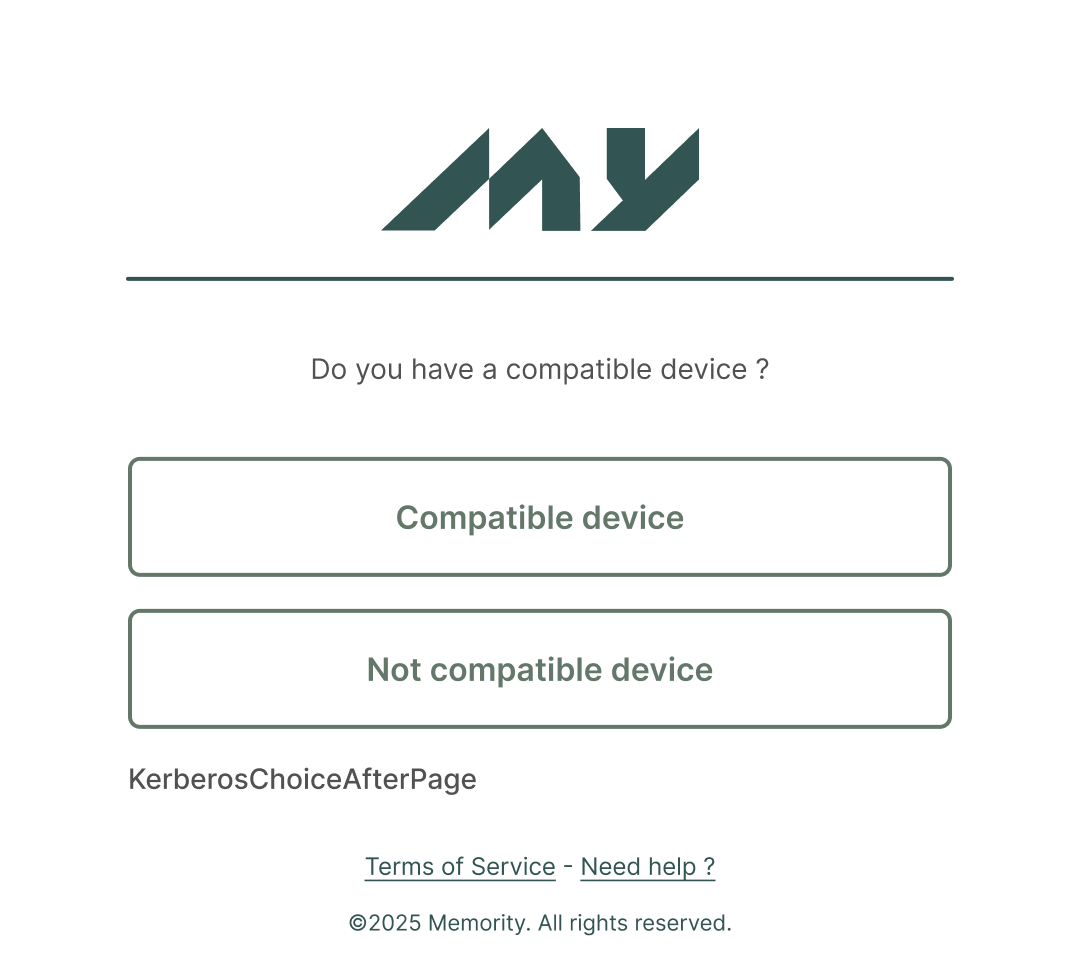

Kerberos Choice Page

Page where the user authenticates with Kerberos.

Position
KerberosChoiceAfterPage

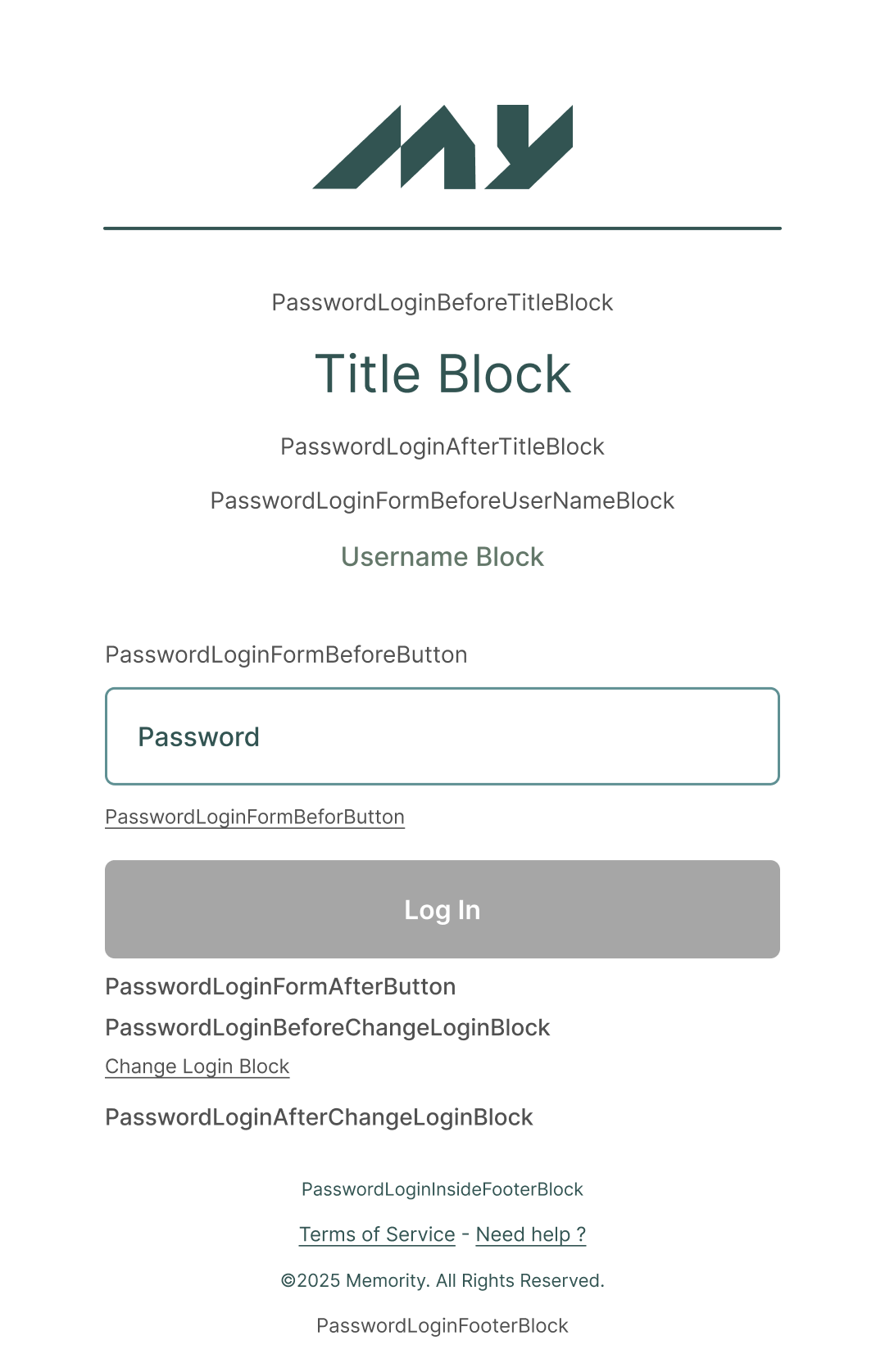

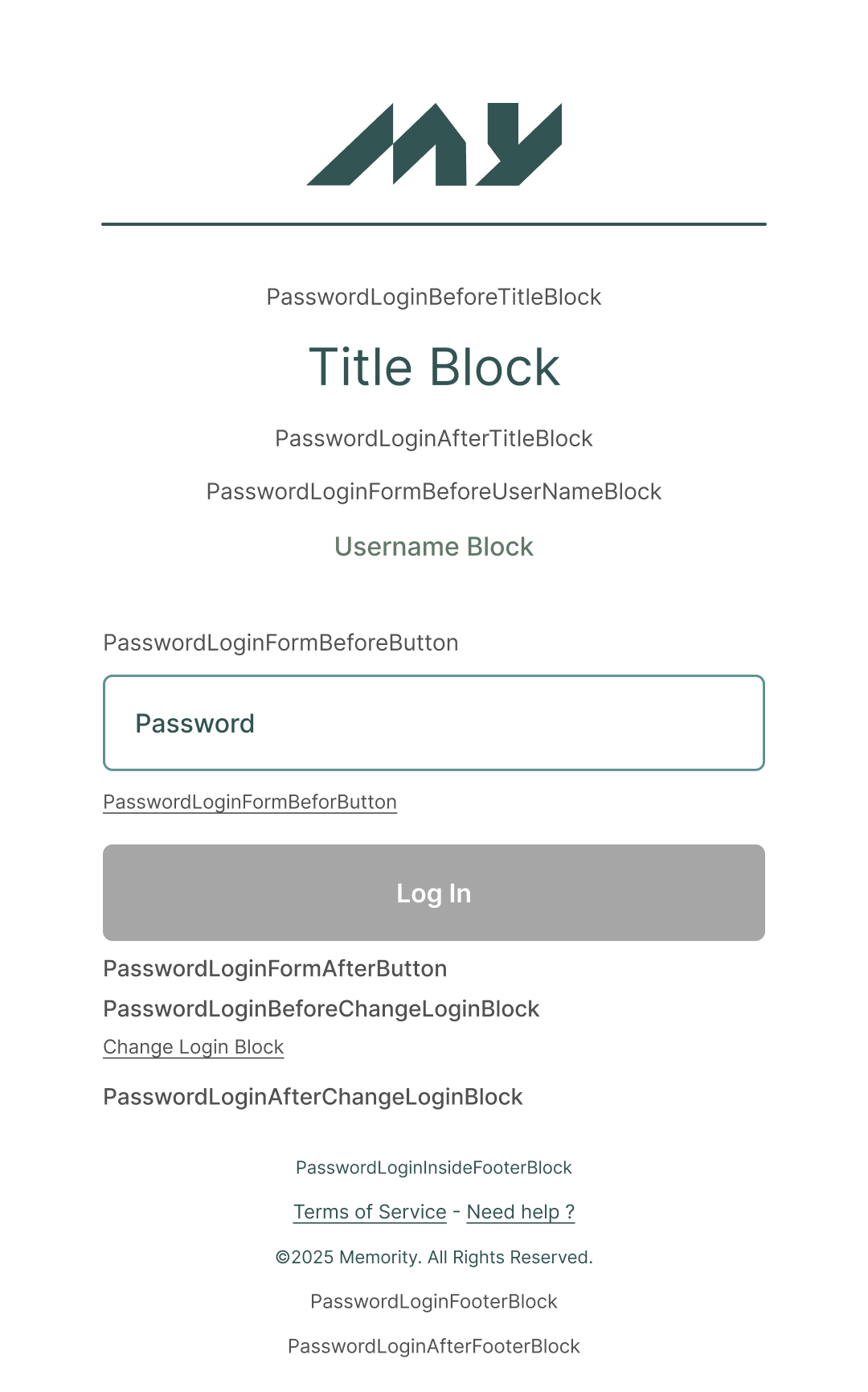

Password Login Page

Page where the user enters their password.

Position
PasswordLoginBeforeTitleBlock
PasswordLoginAfterTitleBlock
PasswordLoginBeforeChangeLoginBlock
PasswordLoginAfterChangeLoginBlock
PasswordLoginFooterBlock
PasswordLoginAfterFooterBlock
PasswordLoginInsideFooterBlock
PasswordLoginFormBeforeUserNameBlock
PasswordLoginFormBeforePasswordBlock
PasswordLoginFormBeforeButton
PasswordLoginFormAfterButton

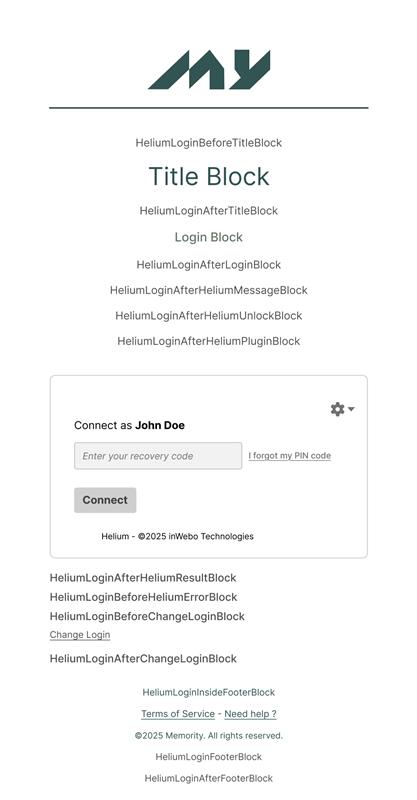

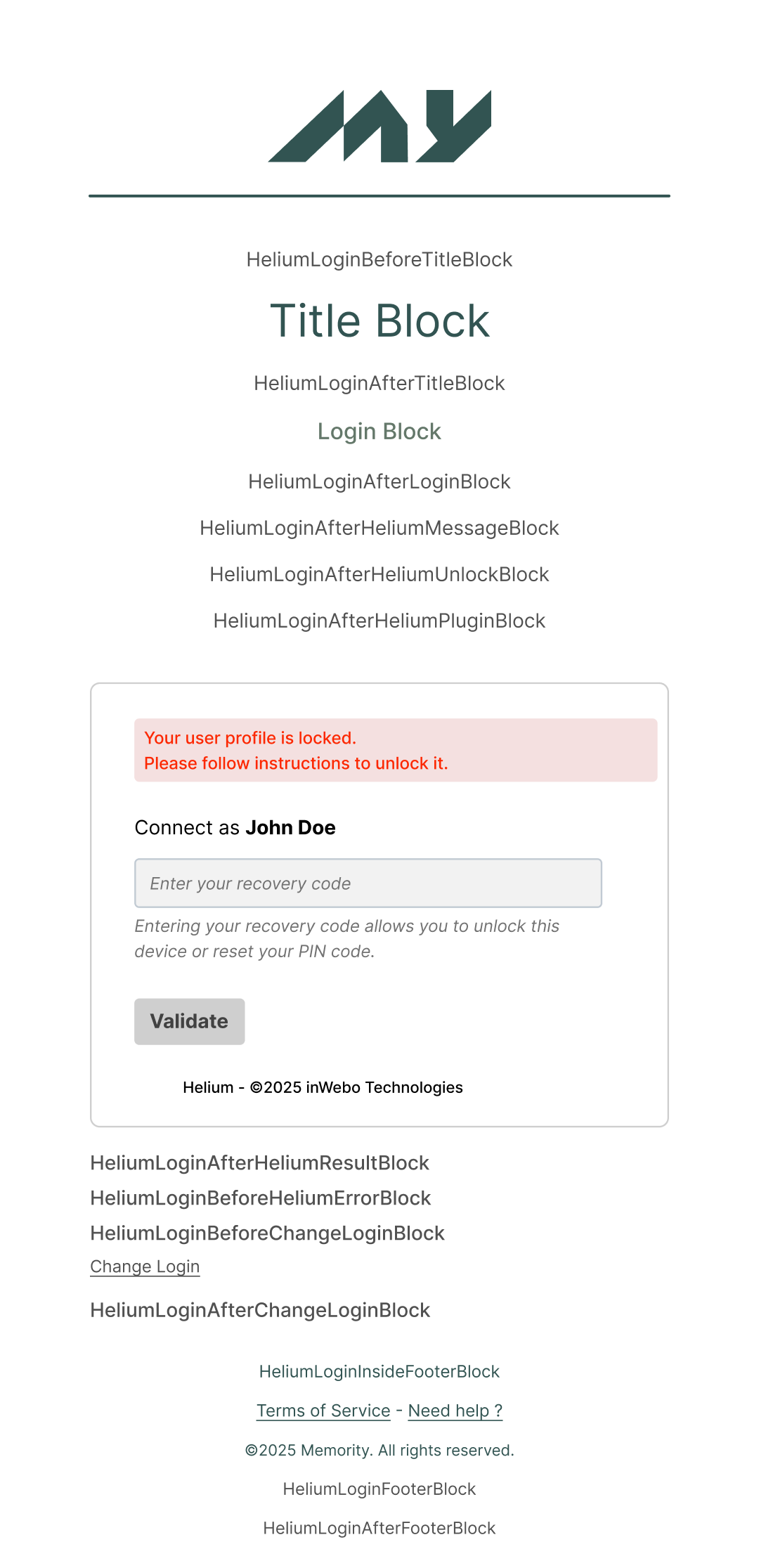

Helium Login Page

Page where the user authenticates with Helium.

Position
HeliumLoginBeforeTitleBlock
HeliumLoginAfterTitleBlock
HeliumLoginAfterLoginBlock
HeliumLoginAfterHeliumMessageBlock
HeliumLoginAfterHeliumUnlockBlock
HeliumLoginAfterHeliumPluginBlock
HeliumLoginAfterHeliumResultBlock
HeliumLoginBeforeHeliumErrorBlock
HeliumLoginBeforeChangeLoginBlock
HeliumLoginAfterChangeLoginBlock
HeliumLoginFooterBlock
HeliumLoginAfterFooterBlock
HeliumLoginInsideFooterBlock

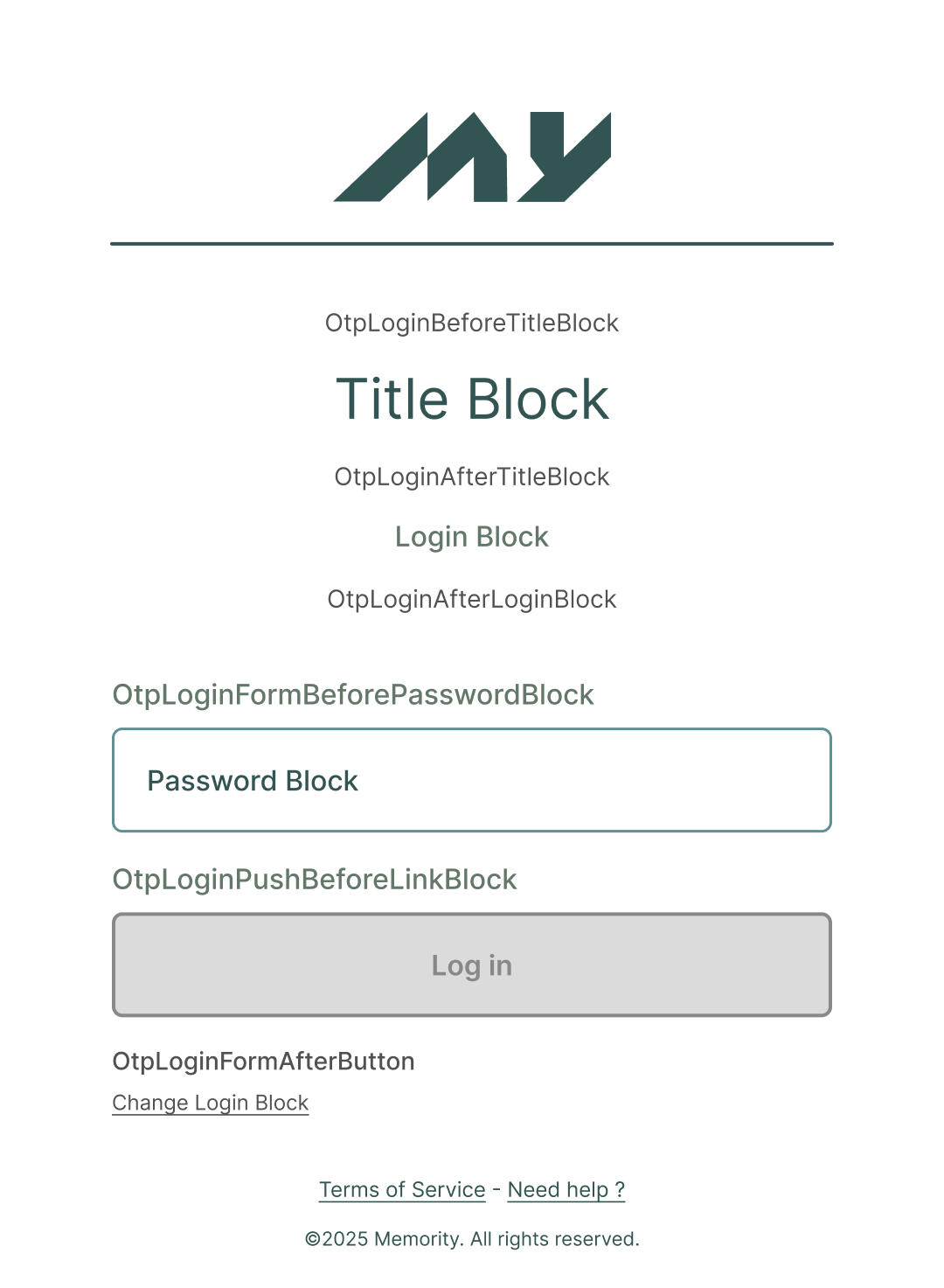

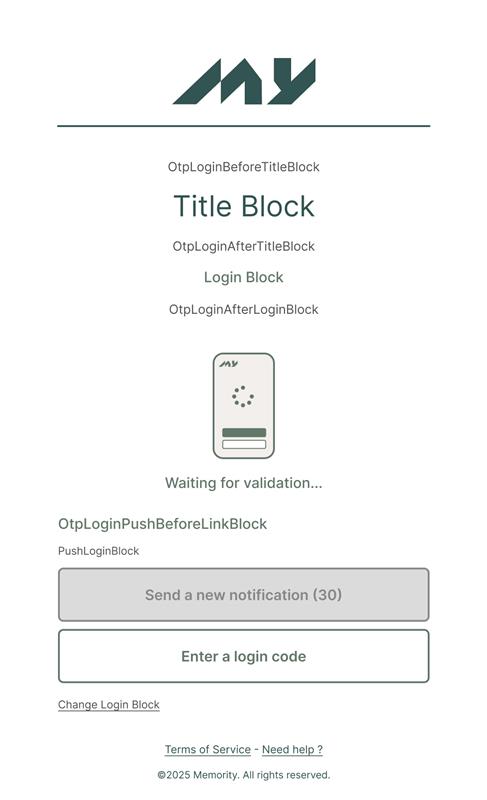

OTP Mobile Login Section

Page where the user authenticates with a one-time code retrieved from a mobile app.

Position
OtpLoginBeforeTitleBlock
OtpLoginAfterTitleBlock
OtpLoginPushAfterLoginBlock
OtpLoginPushBeforeLinkBlock
OtpLoginPushErrorAfterLoginBlock
OtpLoginPushErrorBeforeLinkBlock
OtpLoginOtpAfterLoginBlock
OtpLoginFormBeforeUserNameBlock
OtpLoginFormBeforePasswordBlock
OtpLoginFormBeforeButton
OtpLoginFormAfterButton

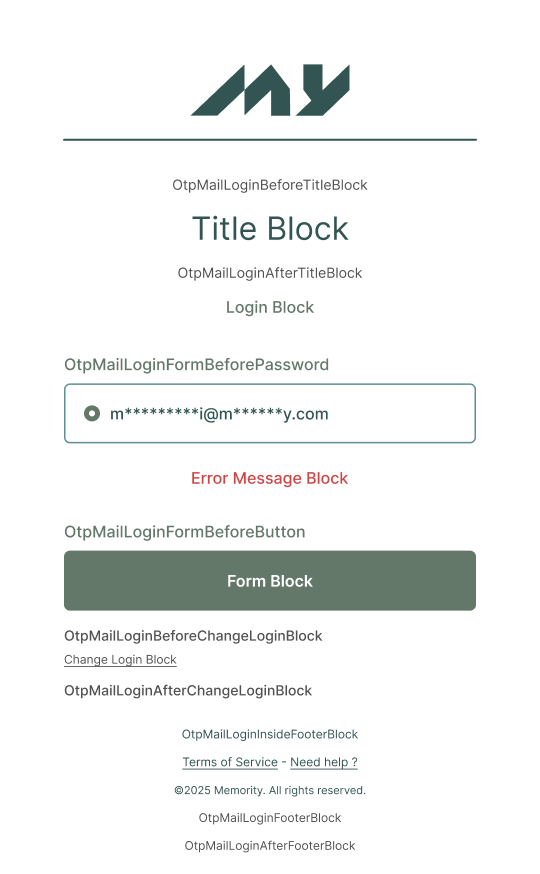

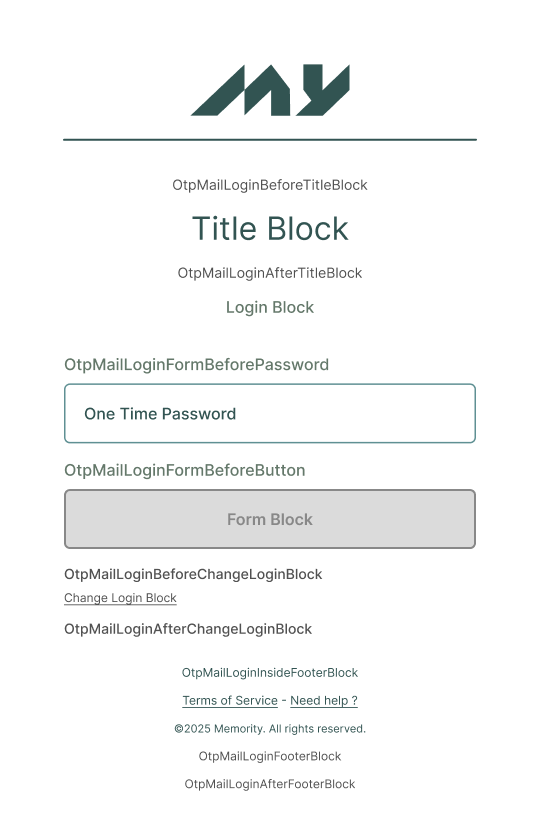

OTP By Mail Login Page

Page where the user authenticates with a one-time code received by email.

Position
OtpMailLoginBeforeTitleBlock
OtpMailLoginAfterTitleBlock
OtpMailLoginFormBeforePasswordBlock
OtpMailLoginFormBeforeButton
OtpMailLoginBeforeChangeLoginBlock
OtpMailLoginAfterChangeLoginBlock
OtpMailLoginFooterBlock
OtpMailLoginAfterFooterBlock
OtpMailLoginInsideFooterBlock

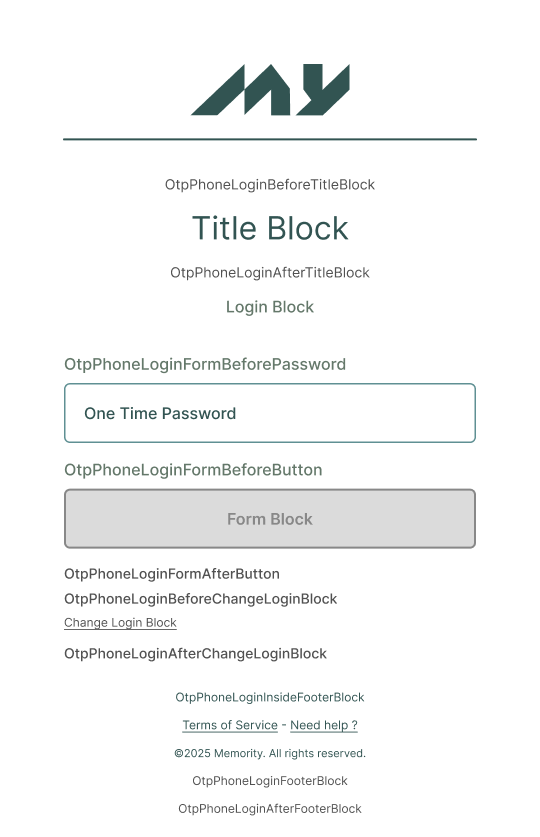

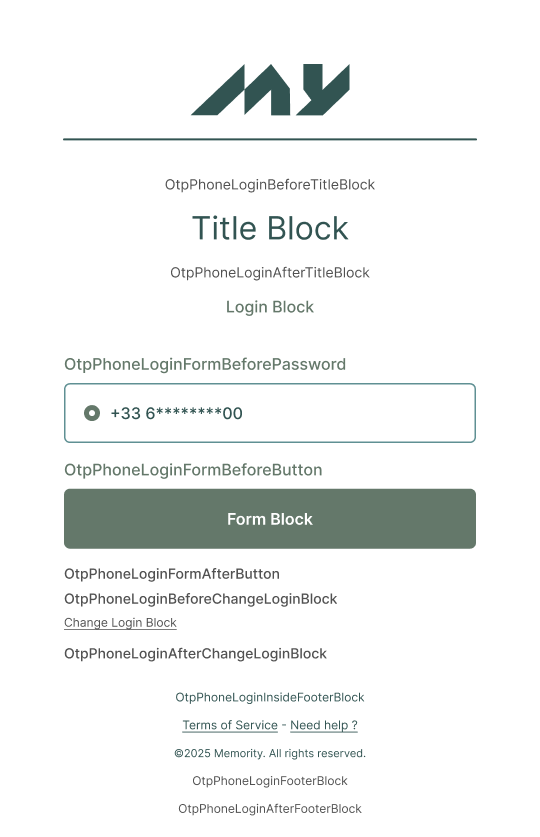

OTP By Phone Login Section (SMS)

Page where the user authenticates with a one-time code received by SMS.

Position
OtpPhoneLoginBeforeTitleBlock
OtpPhoneLoginAfterTitleBlock
OtpPhoneLoginFormBeforeButton
OtpPhoneLoginFormAfterButton
OtpPhoneLoginBeforeChangeLoginBlock
OtpPhoneLoginAfterChangeLoginBlock
OtpPhoneLoginFooterBlock
OtpPhoneLoginAfterFooterBlock
OtpPhoneLoginInsideFooterBlock

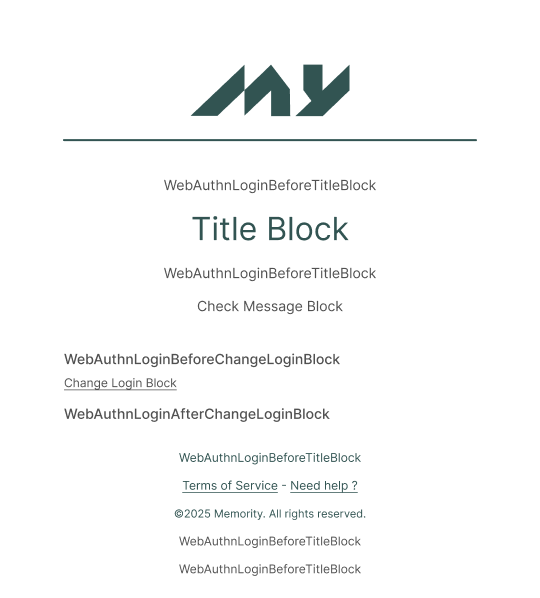

WebAuthn Login Page

Page where the user authenticates with a WebAuthn-compatible device.

Position
WebAuthnLoginBeforeTitleBlock
WebAuthnLoginAfterTitleBlock
WebAuthnLoginBeforeChangeLoginBlock
WebAuthnLoginAfterChangeLoginBlock
WebAuthnLoginFooterBlock
WebAuthnLoginAfterFooterBlock
WebAuthnLoginInsideFooterBlock

Example: Add a password reset link above the login button

The following fragment adds a password reset link before the login button on the password login page, using the PasswordLoginFormBeforeButton position:

CODE

{
  "position": "PasswordLoginFormBeforeButton",
  "id": "PasswordLoginFormBeforeButton",
  "style": null,
  "classes": null,
  "items": [
    {
      "type": "LINK",
      "id": "password-reset-link",
      "style": null,
      "classes": "null",
      "i18n": "tenant.ui.am.login.password-reset-link",
      "href": "{{ENV.usrBaseUrl}}/self/access/passwordReset-common-publicAccess",
      "target": "NEW_TAB",
      "html": null
    }
  ]
}
