Reporting Account Information Widget

Definition

This widget is dedicated to the display of Account Information (provisioned accounts). It can also perform synchronization actions on the Accounts if configured.

It must be used with a "reportingId" that maps to the builtin collection ACCOUNT_INFORMATIONor a custom collection that targets the same collection name ("account").

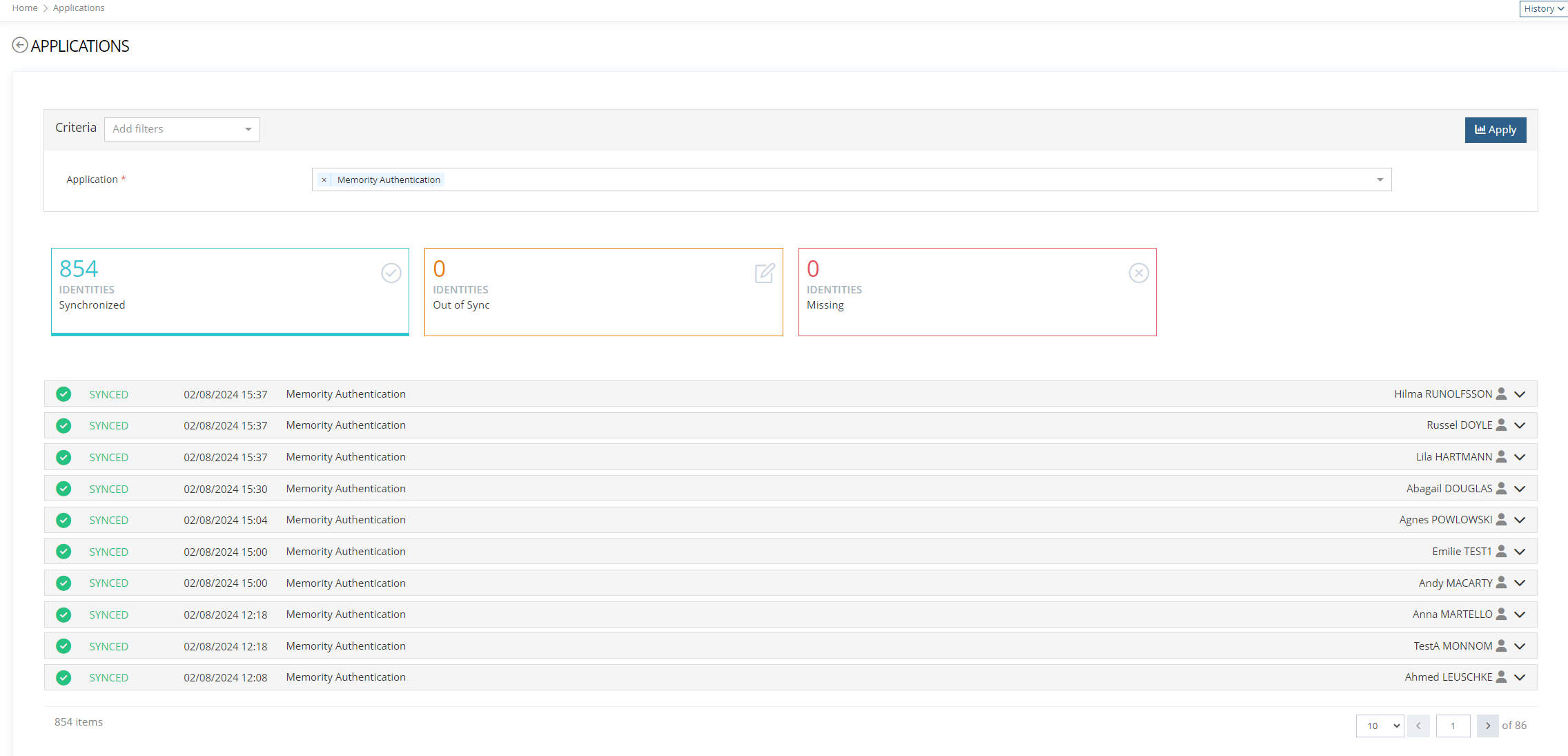

Capture d'écran 2024-02-08 170352-20240208-160352.png

Configuration

Properties

Property

Type

Mandatory

Description

Values (default values in bold)

type

ReportingWidgetType

YES

The type of the widget in XML configuration

-

reportingId

String

YES

The id of a ReportingObjectConfiguration which this widget will target. Must be a configuration which uses the ACCOUNT_INFORMATION builtin collection or a custom one that targets the same collection "account".

-

allowExport

Boolean

NO

Allows to define if the export of the results data is allowed or not.

true,false

displayOnInit

Boolean

NO

If true, the chart will be displayed initially without requiring to click the "Apply" button of the criteria panel first.

true,false

contract

ReportingContractConfiguration

YES

A ReportingWidgetContractConfiguration specifying the different criteria used by the widget for displaying the filter elements. It is also used for validating the submitted criteria.

See Reporting widget contract section for detailed configuration information.

-

renderingRule

RuleDefinition (Normalization rule)

NO

This rule will be applied for each document of the results and allows to transform the content. It MUST return a Map of String to Object.

Example:

XML
  <renderingRule>
   <script><![CDATA[
   // Request criteria can be accessed on VARS.criteria
   // OBJECT is still the Feature target
   // The "row" element is accessed on VALUE
   def dateCriteria = VARS.criteria["_id.date"];

   def thisRowFirstName = VALUE.firstName as String

   // A column "fullNameAndDate " can be configured on the widget
   VALUE.fullNameAndDate = "${thisRowFirstName} ${OBJECT.lastName} ${dateCriteria}";

   if (VALUE.lastMdAuthent != null) {
        // Nested object must be casted to List<Map<String, Object>>
        def firstMdAuthent = VALUE.lastMdAuthent as List<Map<String, Object>>;
        VALUE.firstMdAuthent = firstMdAuthent.get(0).get("md");
   }

   // The value must be returned
   return VALUE;
   ]]></script>
</renderingRule>

-

actionsGroups

List<ActionGroup>

NO

Allow to configure buttons by object kind

CODE
<actionsGroups>
    <actionsGroup>
        <objectKind>IDENTITY</objectKind>
        <actions>
            <action id="view-entry-btn" xsi:type="ctdbum:ButtonWidgetType">
                <hidden>false</hidden>
                <config>
                    <authenticationLevelSufficient>false</authenticationLevelSufficient>
                    <borderless>false</borderless>
                    <circle>true</circle>
                    <color>blue</color>
                    <icon>fa fa-eye</icon>
                    <label>true</label>
                    <target xsi:type="ctdBum:LinkTargetType">
                      <link>feature://test_user-card-read/{dataKey.idmObjectId}</link>
                      <target>NEW_TAB</target>
                    </target>
                    <outline>true</outline>
                    <size>XS</size>
                </config>
            </action>
        </actions>
    </actionsGroup>
</actionsGroups>

Empty list

syncActions

List<SyncActionConfiguration>

NO

Allows to configure synchronization actions for the accounts

Empty list

SyncActionConfiguration

Property

Type

Mandatory

Description

Values (default values in bold)

id

String

YES

Unique identifier of the action being performed.

This prevents conflicts between multiple actions (CUSTOM actions notably).

It is also used in the i18n of CUSTOM actions.

-

action

AccountSyncAction

YES

The builtin synchronization action. Possible values are:

  • SYNCHRONIZE_IDM_OBJECT: display a button to allow synchronization of the target account with the idm object. This action is only available if the account is SYNCED and LINKED.

  • ASSIGN_APPLICATION_ROLE: open a role assignment feature (to be configured using the property “modalLink”) to assign a role to the identity. This action is only available if the account is SYNCED and UNLINKED.

  • DELETE_APPLICATION_OBJECT: hard delete the account. This action is only available if the account is ORPHANED and UNMATCHED.

  • IGNORE_APPLICATION_OBJECT: ignore the account i.e mark the reporting document with a property “ignored” set to true (this is only useful for filtering ignored account with a criteria on the “ignored” property). This action is only available if the account is ORPHANED and UNMATCHED.

  • UNIGNORE_APPLICATION_OBJECT: Remove the “ignored” flag on the account. This action is only available if the account was already marked as “ignored”.

  • CUSTOM: Perform a custom action on the account using a rule configured on the application configuration. A static context can be provided during the action execution using the “staticContext” property

-

objectKinds

Set<ObjectKind>

NO

Allows to restrict the action to a set of object kinds. If left empty the action will apply to all compatible object kinds.

-

modalTarget

ModalTarget

NO

Only applicable if the action ASSIGN_APPLICATION_ROLE is configured.

CODE
<modalTarget>
    <link>feature://assign-role/{dataKey.idmObjectId}</link>
    <modalSize>LG</modalSize>
    <onDismiss>NONE</onDismiss>
</modalTarget>

A link that should match the feature scheme “feature://<featureId>/{dataKey.idmObjectId}” where “featureId” is the id of a Feature containing a RoleAssignmentWidget.

-

staticContext

List<SyncActionContext>

NO

Only applicable for actions of type CUSTOM.

A static context that will be sent in the execution request to the sync service. By defining different static contexts, one can perform branching logic in the custom rule action depending on the performed custom action.

-

color

String

NO

The color of the action button (if null, a default value will be used)

-

icon

String

NO

The icon of the action button (if null, a default value will be used)

Empty list

syncActions

List<SyncActionConfiguration>

NO

Allows to configure synchronization actions for the accounts

Empty list

accountDisplay

Set<AccountDisplayConfiguration>

NO

Allows to configure the display of an account

Empty set

SyncActionContext

Property

Type

Mandatory

Description

Values (default values in bold)

name

String

YES

Unique name of the context

-

value

String

NO

Value of the context

-

Example

Account Information Widget
XML
<?xml version="1.0" encoding="UTF-8"?>
<kit:DataSet xmlns:atlastcf="http://www.memority.com/atlas/tcf/1_0" xmlns:ctd="http://www.memority.com/citadel/1_0" xmlns:ctdbpmn="http://www.memority.com/citadel/bpmn/1_0" xmlns:ctdbum="http://www.memority.com/citadel/bum/1_0" xmlns:ctdcore="http://www.memority.com/citadel/core/1_0" xmlns:ctdidm="http://www.memority.com/citadel/idm/1_0" xmlns:ctdrep="http://www.memority.com/citadel/rep/1_0" xmlns:ctdrule="http://www.memority.com/citadel/rule/1_0" xmlns:ctdtnt="http://www.memority.com/citadel/tnt/1_0" xmlns:i18n="http://www.memority.com/toolkit/addons/i18n/1_0" xmlns:kit="http://www.memority.com/toolkit/1_0" xmlns:maiaamcp="http://www.memority.com/maia/amcp/1_0" xmlns:netfilter="http://www.memority.com/toolkit/network-filtering/1_0" xmlns:rule="http://www.memority.com/toolkit/rule/1_0" xmlns:ruleaddon="http://www.memority.com/toolkit/addons/rule/1_0" xmlns:search="http://www.memority.com/toolkit/search-expression/1_0" xmlns:settings="http://www.memority.com/toolkit/addons/settings/1_0" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" tenant="default" env="memority" stack="memority">
   <ctdbum:FeatureConfiguration id="test_reporting-account-information-feature">
      <createdAt>2022-06-01T14:13:50.849Z</createdAt>
      <updatedAt>2024-04-24T12:41:31.112Z</updatedAt>
      <name>reporting-account-information-feature</name>
      <description>Display provisioned account information</description>
      <type>UI</type>
      <scope type="EXPRESSION" objectKind="IDENTITY">
         <searchExpression/>
         <objectTypes>
            <objectType>test_identityType_employee</objectType>
         </objectTypes>
      </scope>
      <options>
         <formLabelOnTop>false</formLabelOnTop>
         <pendingOperationBehaviour>WARN</pendingOperationBehaviour>
         <submit>
            <reportDisplay>DISPLAY_ALL</reportDisplay>
         </submit>
      </options>
      <screen>
         <views>
            <view id="reporting-account-information-view-1">
               <description></description>
               <icon>fa fa-user</icon>
               <sections>
                  <section id="reporting-account-information-section-1">
                     <layout>SINGLE</layout>
                     <columns>
                        <column>
                           <sections/>
                           <widgets>
                              <widget id="reporting-account-information-widget" xsi:type="ctdbum:ReportingAccountInformationWidgetType">
                                 <hidden>false</hidden>
                                 <displayOptions>
                                    <modalSize>LG</modalSize>
                                 </displayOptions>
                                 <config>
                                    <bordered>false</bordered>
                                    <title>false</title>
                                    <contract>
                                       <criteria>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <fixedMatchOperator>CONTAINS_LIKE</fixedMatchOperator>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>account.displayName</name>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT_CHOICE</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>dominoApplicationId</name>
                                             <values>
                                                <staticValues>
                                                   <value>ldap-application-demo</value>
                                                   <value>dummy-application-test-3</value>
                                                   <value>ldap-application-test-1</value>
                                                   <value>ldap-application-test-2</value>
                                                   <value>prov-activeDirectory-application</value>
                                                </staticValues>
                                             </values>
                                          </criterion>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT_CHOICE</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>accountStatus</name>
                                             <values>
                                                <staticValues>
                                                   <value>SYNCED</value>
                                                   <value>OUT_OF_SYNC</value>
                                                   <value>MISSING</value>
                                                   <value>ORPHANED</value>
                                                   <value>NOT_PROVISIONED</value>
                                                   <value>UNKNOWN</value>
                                                </staticValues>
                                             </values>
                                          </criterion>
                                       </criteria>
                                    </contract>
                                    <displayOnInit>true</displayOnInit>
                                    <reportingId>accountInformation</reportingId>
                                    <actionsGroups>
                                       <actionsGroup>
                                          <actions>
                                             <action id="view-entry-btn" xsi:type="ctdbum:ButtonWidgetType">
                                                <hidden>false</hidden>
                                                <config>
                                                   <authenticationLevelSufficient>false</authenticationLevelSufficient>
                                                   <borderless>false</borderless>
                                                   <circle>true</circle>
                                                   <color>blue</color>
                                                   <icon>fa fa-eye</icon>
                                                   <label>true</label>
                                                   <linkTarget>NEW_TAB</linkTarget>
                                                   <outline>true</outline>
                                                   <size>XS</size>
                                                   <target xsi:type="ctdbum:LinkTargetType">
                                                      <link>feature://test_user-card-read/{dataKey.idmObjectId}</link>
                                                      <target>SELF</target>
                                                   </target>
                                                </config>
                                             </action>
                                          </actions>
                                          <objectKind>IDENTITY</objectKind>
                                       </actionsGroup>
                                    </actionsGroups>
                                    <syncActions>
                                       <syncAction id="syncIdmObject">
                                          <objectKinds/>
                                          <staticContext/>
                                          <action>SYNCHRONIZE_IDM_OBJECT</action>
                                       </syncAction>
                                       <syncAction id="ignoreApplicationObject">
                                          <objectKinds/>
                                          <staticContext/>
                                          <action>IGNORE_APPLICATION_OBJECT</action>
                                       </syncAction>
                                       <syncAction id="uningnoreApplicationObject">
                                          <objectKinds/>
                                          <staticContext/>
                                          <action>UNIGNORE_APPLICATION_OBJECT</action>
                                       </syncAction>
                                       <syncAction id="assignRole">
                                          <objectKinds/>
                                          <staticContext/>
                                          <action>ASSIGN_APPLICATION_ROLE</action>
                                          <modalTarget>
                                             <link>feature://test_employee-dashboard/{dataKey.idmObjectId}</link>
                                             <modalSize>LG</modalSize>
                                             <onDismiss>REFRESH</onDismiss>
                                          </modalTarget>
                                       </syncAction>
                                       <syncAction id="customAction1">
                                          <objectKinds/>
                                          <staticContext>
                                             <context>
                                                <name>key1</name>
                                                <value>value1</value>
                                             </context>
                                             <context>
                                                <name>key2</name>
                                                <value>value2</value>
                                             </context>
                                          </staticContext>
                                          <action>CUSTOM</action>
                                          <color>blue</color>
                                          <icon>fa fa-bolt</icon>
                                       </syncAction>
                                       <syncAction id="deleteApplicationObject">
                                          <objectKinds/>
                                          <staticContext/>
                                          <action>DELETE_APPLICATION_OBJECT</action>
                                       </syncAction>
                                    </syncActions>
                                 </config>
                              </widget>
                           </widgets>
                        </column>
                     </columns>
                  </section>
               </sections>
            </view>
         </views>
         <frame>
            <actions/>
            <collapsible>false</collapsible>
            <display>PORTLET</display>
            <initiallyCollapsed>false</initiallyCollapsed>
            <title>false</title>
         </frame>
      </screen>
      <authentication>
         <authenticationLevelComparison>MINIMUM</authenticationLevelComparison>
      </authentication>
      <operations/>
      <operationOnSelf>false</operationOnSelf>
   </ctdbum:FeatureConfiguration>
</kit:DataSet>

Account Information Widget with association
CODE
<?xml version="1.0" encoding="UTF-8"?>
<kit:DataSet xmlns:ctd="http://www.memority.com/citadel/1_0" xmlns:ctdbpmn="http://www.memority.com/citadel/bpmn/1_0" xmlns:ctdbum="http://www.memority.com/citadel/bum/1_0" xmlns:ctdcore="http://www.memority.com/citadel/core/1_0" xmlns:ctdidm="http://www.memority.com/citadel/idm/1_0" xmlns:ctdrep="http://www.memority.com/citadel/rep/1_0" xmlns:ctdrule="http://www.memority.com/citadel/rule/1_0" xmlns:ctdtnt="http://www.memority.com/citadel/tnt/1_0" xmlns:kit="http://www.memority.com/toolkit/1_0" xmlns:rule="http://www.memority.com/toolkit/rule/1_0" xmlns:ruleaddon="http://www.memority.com/toolkit/addons/rule/1_0" xmlns:search="http://www.memority.com/toolkit/search-expression/1_0" xmlns:settings="http://www.memority.com/toolkit/addons/settings/1_0" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" tenant="default" env="memority" stack="memority">
   <ctdbum:FeatureConfiguration id="test_reporting-account-information-counter-feature">
      <createdAt>2022-06-02T13:36:55.069Z</createdAt>
      <updatedAt>2022-06-02T14:14:48.484Z</updatedAt>
      <name>account-information-counter-feature</name>
      <description>Display report about user accounts</description>
      <type>UI</type>
      <scope type="EXPRESSION" objectKind="IDENTITY">
         <searchExpression/>
         <objectTypes>
            <objectType>test_identityType_employee</objectType>
         </objectTypes>
      </scope>
      <options>
         <formLabelOnTop>false</formLabelOnTop>
         <pendingOperationBehaviour>WARN</pendingOperationBehaviour>
         <submit>
            <reportDisplay>DISPLAY_ALL</reportDisplay>
         </submit>
      </options>
      <screen>
         <views>
            <view id="reporting-account-information-view-1">
               <description></description>
               <icon>fa fa-user</icon>
               <sections>
                  <section id="reporting-account-information-section-1">
                     <layout>SINGLE</layout>
                     <columns>
                        <column>
                           <widgets>
                              <widget id="reporting-account-information-top-filter-widget" xsi:type="ctdbum:ReportingWidgetType">
                                 <hidden>false</hidden>
                                 <displayOptions>
                                    <modalSize>SM</modalSize>
                                 </displayOptions>
                                 <config>
                                    <bordered>false</bordered>
                                    <title>false</title>
                                    <associations>
                                       <association>
                                          <criteriaMapping>
                                             <mapping>
                                                <source>dominoApplicationId</source>
                                                <target>dominoApplicationId</target>
                                             </mapping>
                                          </criteriaMapping>
                                          <allowEditCriteria>true</allowEditCriteria>
                                          <propagation>
                                             <strategy>ALWAYS</strategy>
                                          </propagation>
                                          <widgetId>reporting-account-information-counter-synced-widget</widgetId>
                                       </association>
                                       <association>
                                          <criteriaMapping>
                                             <mapping>
                                                <source>dominoApplicationId</source>
                                                <target>dominoApplicationId</target>
                                             </mapping>
                                          </criteriaMapping>
                                          <allowEditCriteria>true</allowEditCriteria>
                                          <propagation>
                                             <strategy>ALWAYS</strategy>
                                          </propagation>
                                          <widgetId>reporting-account-information-counter-out-of-sync-widget</widgetId>
                                       </association>
                                    </associations>
                                    <contract>
                                       <criteria>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>dominoApplicationId</name>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                       </criteria>
                                    </contract>
                                    <display>
                                       <xySeries/>
                                       <pieSeries/>
                                       <axes>
                                          <axesX/>
                                          <axesY/>
                                       </axes>
                                       <chartType>NONE</chartType>
                                       <counter>
                                          <borderColor>grey</borderColor>
                                          <counterColor>dark</counterColor>
                                       </counter>
                                       <displayOnInit>false</displayOnInit>
                                       <legend>
                                          <display>true</display>
                                       </legend>
                                       <size>
                                          <cssHeight>500px</cssHeight>
                                          <cssWidth>100%</cssWidth>
                                          <radiusPercent>50</radiusPercent>
                                       </size>
                                       <timeline>
                                          <bullets/>
                                          <horizontal>false</horizontal>
                                          <initialRange>
                                             <endRange>1.0</endRange>
                                             <startRange>0.0</startRange>
                                          </initialRange>
                                          <levelCount>3</levelCount>
                                          <timelineColor>#67b7dc</timelineColor>
                                          <tooltipConfiguration>
                                             <maxHeight>500</maxHeight>
                                             <maxWidth>500</maxWidth>
                                             <orientation>VERTICAL</orientation>
                                          </tooltipConfiguration>
                                       </timeline>
                                    </display>
                                    <reportingId>accountInformation</reportingId>
                                 </config>
                              </widget>
                           </widgets>
                        </column>
                     </columns>
                  </section>
                  <section id="reporting-account-information-section-2">
                     <layout>SINGLE</layout>
                     <frame>
                        <actions/>
                        <collapsible>false</collapsible>
                        <display>PORTLET</display>
                        <initiallyCollapsed>false</initiallyCollapsed>
                        <title>false</title>
                     </frame>
                     <columns>
                        <column>
                           <widgets>
                              <widget id="reporting-account-information-counter-synced-widget" xsi:type="ctdbum:ReportingWidgetType">
                                 <hidden>false</hidden>
                                 <displayOptions>
                                    <modalSize>SM</modalSize>
                                 </displayOptions>
                                 <config>
                                    <bordered>false</bordered>
                                    <title>true</title>
                                    <associations>
                                       <association>
                                          <criteriaMapping>
                                             <mapping>
                                                <source>accountStatus</source>
                                                <target>accountStatus</target>
                                             </mapping>
                                          </criteriaMapping>
                                          <allowEditCriteria>true</allowEditCriteria>
                                          <propagation>
                                             <strategy>SELECTION</strategy>
                                          </propagation>
                                          <widgetId>reporting-account-information-status-synced-widget</widgetId>
                                       </association>
                                    </associations>
                                    <contract>
                                       <criteria>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>true</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>accountStatus</name>
                                             <staticFixedValue>SYNCED</staticFixedValue>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>dominoApplicationId</name>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                       </criteria>
                                    </contract>
                                    <display>
                                       <xySeries/>
                                       <pieSeries/>
                                       <axes>
                                          <axesX/>
                                          <axesY/>
                                       </axes>
                                       <chartType>COUNTER_CHART</chartType>
                                       <counter>
                                          <aggregationExpression>count()</aggregationExpression>
                                          <borderColor>green</borderColor>
                                          <counterColor>green</counterColor>
                                          <icon>icon-note</icon>
                                          <text>tenant.reporting.synced.title.label</text>
                                          <title>tenant.reporting.stat1.title.label</title>
                                       </counter>
                                       <displayOnInit>false</displayOnInit>
                                       <legend>
                                          <display>true</display>
                                       </legend>
                                       <size>
                                          <cssHeight>500px</cssHeight>
                                          <cssWidth>100%</cssWidth>
                                          <radiusPercent>50</radiusPercent>
                                       </size>
                                       <timeline>
                                          <bullets/>
                                          <horizontal>false</horizontal>
                                          <initialRange>
                                             <endRange>1.0</endRange>
                                             <startRange>0.0</startRange>
                                          </initialRange>
                                          <levelCount>3</levelCount>
                                          <timelineColor>#67b7dc</timelineColor>
                                          <tooltipConfiguration>
                                             <maxHeight>500</maxHeight>
                                             <maxWidth>500</maxWidth>
                                             <orientation>VERTICAL</orientation>
                                          </tooltipConfiguration>
                                       </timeline>
                                    </display>
                                    <reportingId>accountInformation</reportingId>
                                 </config>
                              </widget>
                              <widget id="reporting-account-information-counter-out-of-sync-widget" xsi:type="ctdbum:ReportingWidgetType">
                                 <hidden>false</hidden>
                                 <displayOptions>
                                    <modalSize>SM</modalSize>
                                 </displayOptions>
                                 <config>
                                    <bordered>false</bordered>
                                    <title>true</title>
                                    <associations>
                                       <association>
                                          <criteriaMapping>
                                             <mapping>
                                                <source>accountStatus</source>
                                                <target>accountStatus</target>
                                             </mapping>
                                          </criteriaMapping>
                                          <allowEditCriteria>true</allowEditCriteria>
                                          <propagation>
                                             <strategy>SELECTION</strategy>
                                          </propagation>
                                          <widgetId>reporting-account-information-status-out-of-sync-widget</widgetId>
                                       </association>
                                    </associations>
                                    <contract>
                                       <criteria>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>true</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>accountStatus</name>
                                             <staticFixedValue>OUT_OF_SYNC</staticFixedValue>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>dominoApplicationId</name>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                       </criteria>
                                    </contract>
                                    <display>
                                       <xySeries/>
                                       <pieSeries/>
                                       <axes>
                                          <axesX/>
                                          <axesY/>
                                       </axes>
                                       <chartType>COUNTER_CHART</chartType>
                                       <counter>
                                          <aggregationExpression>count()</aggregationExpression>
                                          <borderColor>red</borderColor>
                                          <counterColor>red</counterColor>
                                          <icon>icon-note</icon>
                                          <text>tenant.reporting.out-of-sync.title.label</text>
                                          <title>tenant.reporting.stat1.title.label</title>
                                       </counter>
                                       <displayOnInit>false</displayOnInit>
                                       <legend>
                                          <display>true</display>
                                       </legend>
                                       <size>
                                          <cssHeight>500px</cssHeight>
                                          <cssWidth>100%</cssWidth>
                                          <radiusPercent>50</radiusPercent>
                                       </size>
                                       <timeline>
                                          <bullets/>
                                          <horizontal>false</horizontal>
                                          <initialRange>
                                             <endRange>1.0</endRange>
                                             <startRange>0.0</startRange>
                                          </initialRange>
                                          <levelCount>3</levelCount>
                                          <timelineColor>#67b7dc</timelineColor>
                                          <tooltipConfiguration>
                                             <maxHeight>500</maxHeight>
                                             <maxWidth>500</maxWidth>
                                             <orientation>VERTICAL</orientation>
                                          </tooltipConfiguration>
                                       </timeline>
                                    </display>
                                    <reportingId>accountInformation</reportingId>
                                 </config>
                              </widget>
                           </widgets>
                        </column>
                     </columns>
                  </section>
                  <section id="reporting-sync-report-section-3">
                     <layout>SINGLE</layout>
                     <columns>
                        <column>
                           <widgets>
                              <widget id="reporting-account-information-status-synced-widget" xsi:type="ctdbum:ReportingAccountInformationWidgetType">
                                 <hidden>false</hidden>
                                 <displayOptions>
                                    <modalSize>LG</modalSize>
                                 </displayOptions>
                                 <config>
                                    <bordered>false</bordered>
                                    <title>false</title>
                                    <contract>
                                       <criteria>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>true</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>accountStatus</name>
                                             <staticFixedValue>SYNCED</staticFixedValue>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT_CHOICE</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>dominoApplicationId</name>
                                             <values>
                                                <staticValues>
                                                   <value>ldap-application-demo</value>
                                                   <value>dummy-application-test-3</value>
                                                   <value>ldap-application-test-1</value>
                                                   <value>ldap-application-test-2</value>
                                                </staticValues>
                                             </values>
                                          </criterion>
                                       </criteria>
                                    </contract>
                                    <displayOnInit>false</displayOnInit>
                                    <reportingId>accountInformation</reportingId>
                                 </config>
                              </widget>
                              <widget id="reporting-account-information-status-out-of-sync-widget" xsi:type="ctdbum:ReportingAccountInformationWidgetType">
                                 <hidden>false</hidden>
                                 <displayOptions>
                                    <modalSize>LG</modalSize>
                                 </displayOptions>
                                 <config>
                                    <bordered>false</bordered>
                                    <title>false</title>
                                    <contract>
                                       <criteria>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>true</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>accountStatus</name>
                                             <staticFixedValue>OUT_OF_SYNC</staticFixedValue>
                                             <values>
                                                <staticValues/>
                                             </values>
                                          </criterion>
                                          <criterion>
                                             <allowFixedValueOverride>false</allowFixedValueOverride>
                                             <controlType>
                                                <multivalued>false</multivalued>
                                                <options>
                                                   <periodSelection>
                                                      <mode>IN_LAST</mode>
                                                   </periodSelection>
                                                </options>
                                                <valueType>TEXT_CHOICE</valueType>
                                             </controlType>
                                             <displayFixedValue>false</displayFixedValue>
                                             <forGrouping>false</forGrouping>
                                             <mandatory>false</mandatory>
                                             <name>dominoApplicationId</name>
                                             <values>
                                                <staticValues>
                                                   <value>ldap-application-demo</value>
                                                   <value>dummy-application-test-3</value>
                                                   <value>ldap-application-test-1</value>
                                                   <value>ldap-application-test-2</value>
                                                </staticValues>
                                             </values>
                                          </criterion>
                                       </criteria>
                                    </contract>
                                    <displayOnInit>false</displayOnInit>
                                    <reportingId>accountInformation</reportingId>
                                 </config>
                              </widget>
                           </widgets>
                        </column>
                     </columns>
                  </section>
               </sections>
            </view>
         </views>
         <frame>
            <actions/>
            <collapsible>false</collapsible>
            <display>PORTLET</display>
            <initiallyCollapsed>false</initiallyCollapsed>
            <title>false</title>
         </frame>
      </screen>
      <authentication>
         <authenticationLevelComparison>MINIMUM</authenticationLevelComparison>
      </authentication>
      <operations/>
      <operationOnSelf>false</operationOnSelf>
   </ctdbum:FeatureConfiguration>
</kit:DataSet>

Read Next

Reporting Widget
Reporting List Widget
Reporting Synchronization Widget
Reporting Account Information Widget
Reporting Widgets Examples
JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.

Contact Support Close
